View larger
Images are for illustrative purposes only. Please refer to data sheet for details

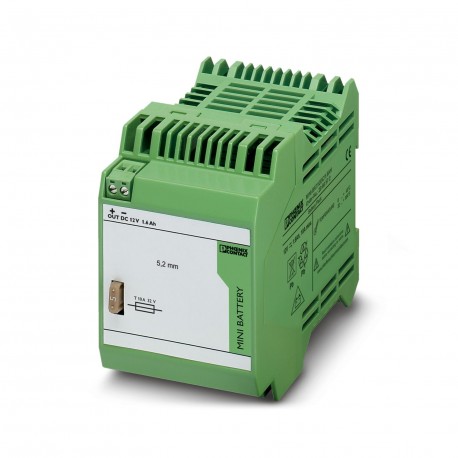

MINI-BAT/12DC/1.6AH 2866572 PHOENIX CONTACT Energy storage
MINI-BAT/12DC/1.6AH
2866572
PHOENIX CONTACT
1 Pcs.
Energy storage
Energy accumulator, lead AGM, VRLA technology, 12 V DC, 1.6 Ah.
Battery module, lead AGM, VRLA technology, 12 V DC, 1.6 Ah.
Automation > Battery (lithium) for vehicles and applications
Power Supplies (PS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | |
| Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the technical data area under “Latest startup”. |
Input data
| Input voltage | 12 V DC |
| Buffer period | 60 min. (1 A) |
| 6 min. (4 A) |
Output data
| Nominal output voltage | 12 V DC |
| Output current Imax | 10 A |
| Output fuse | 10 A |
| Connection in parallel | 5 |
| Connection in series | no |
| Battery operation | |
| Nominal output voltage | 12 V DC |
| Nominal output current (IN) | 10 A |
Energy storage
| End-of-charge voltage | 13.8 V |
| Charging current | 1 A |
| Nominal capacity | 1.6 Ah |
| Battery module service life | 3 Years (20 °C) |
| Latest startup (battery only) - range | 3 Months (0 °C ... 20 °C) |
| 3 Months ... 1 Months (20 °C ... 30 °C) | |
| 1 Months (30 °C ... 40 °C) | |
| Battery technology | VRLA-AGM |
| Memory medium | Lead rechargeable battery module |
| Accumulator type | YUASA NP0.8-12 |
| YUCEL Y0.8-12 | |
| YUVOLT 0.8-12 | |
| Number of cells | 1 |
| Size designation | Block |
| Battery pack | yes |
| IQ technology | no |
| Suitable for fast charging | yes |
Product properties
| Product type | Battery module |
| Product family | Battery module |
| Application | for MINI DC-UPS |
| Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
| IQ technology | no |
| Data management status | |
| Article revision | 04 |
| Insulation characteristics | |
| Protection class | III |
Dimensions
| Width | 67.5 mm |
| Height | 99 mm |
| Depth | 107 mm |
| Installation dimensions | |
| Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 30 mm / 30 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 40 °C |
| Ambient temperature (storage/transport) | 0 °C ... 40 °C |
| Max. permissible relative humidity (operation) | 95 % |
Ex data
| Suited for EX-applications | no |
| Feature Name | Feature Value |
|---|---|
| Size indication (EF000363) | Block |
| Nominal voltage (EF000002) | 12 V |
| Capacity (EF000364) | 1600 mAh |
| Length (EF001438) | 107 mm |
| Height including pole (EF005894) | 99 mm |
| Width (EF000008) | 67.5 mm |
| Battery pack (EF006177) | No |
| Suitable for EX-applications (EF001779) | No |
| Plastic housing (EF001034) | No |
| Ambient temperature (EF002386) | 40 °C |
| Suitable for rapid charger (EF005851) | No |
