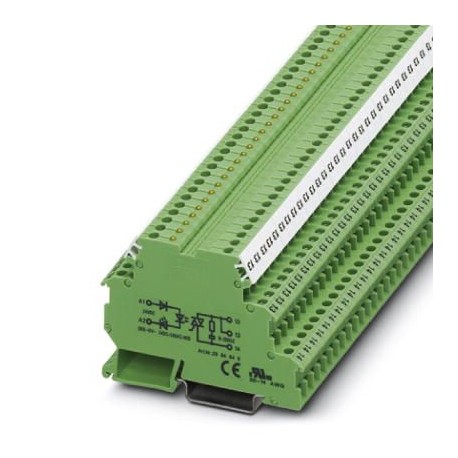

PHOENIX CONTACT DEK-OV-12DC/240AC/800 DEK-OV- 12DC/240AC/800 2964636 PHOENIX CONTACT Solid-state relay terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DEK-OV- 12DC/240AC/800 2964636 PHOENIX CONTACT Solid-state relay terminal block

DEK-OV-12DC/240AC/800

2964636

PHOENIX CONTACT

1 Pcs.

Solid-state relay terminal block Power solid-state relay terminal, input: 12 V DC, output: 10-253 V AC/800 mA, terminal width 6.2 mm

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2964636
Packing unit10 pc
Catalog pagePage 441 (C-5-2017)
GTIN4017918130916
Weight per Piece (excluding packing)20.860 g
Custom tariff number85364190
Country of originCN (China)

Dimensions

Width6.2 mm
Height80 mm
Depth56 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

Input data

Nominal input voltage UN12 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range9.6 V DC ... 14.4 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN10.5 mA
Typical response time< 10 ms
Typical turn-off time< 10 ms
Operating voltage displayYellow LED
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode
Transmission frequency10 Hz

Output data

Output voltage range10 V AC ... 253 V AC (50/60 Hz)
Limiting continuous current0.8 A (see derating curve)
Maximum inrush current30 A (t = 10 ms)
Min. load current10 mA
Leakage current1.2 mA (in off state)
Max. load value4.5 A2s
Peak offstate voltage600 V (Periodic peak reverse voltage)
Voltage drop at max. limiting continuous current≤ 1 V
Output circuit2-conductor floating, zero voltage switch
Type of protectionRCV circuit
Protective circuit/componentRCV circuit

Connection data, input side

Connection nameInput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Torque0.5 Nm

Connection data, output side

Connection nameOutput side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Torque0.5 Nm

General

NoteThe housing is open on one side. The appropriate cover is D-DEK 1,5 GN (2716949).
Type of noteNote on application
NoteUse of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.
Test voltage input/output2.5 kV AC
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2964636 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 9.6 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 10 V
Type of output voltage (EF008222) AC
Rated operation current Ie (EF001443) 0.8 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes
