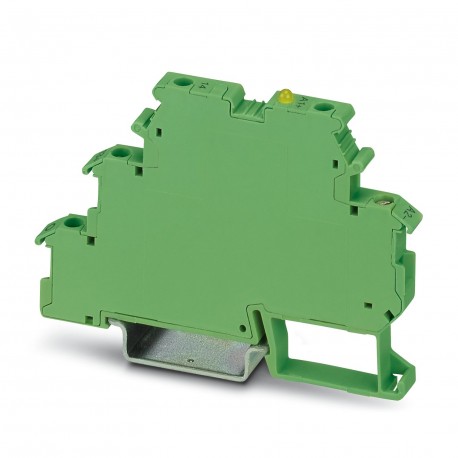

DEK-OV- 24DC/ 24DC/ 3/AKT 2964296 PHOENIX CONTACT Solid-state relay terminal block

DEK-OV-24DC/ 24DC/ 3/AKT

2964296

PHOENIX CONTACT

1 Pcs.

Solid-state relay terminal block Solid state power relay terminal for actuators, input: 24 V DC, output: 3-30 V DC/3 A, terminal width 6.2 mm Power solid-state relay terminal block for actuator, input: 24 V DC, output: 3 - 30 V DC/3 A, terminal block width: 6.2 mm

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Note on applicationUse of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavorable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.
Product properties
Product typeSolid-state relay module
Product familyDEK
ApplicationOutput function
Operating mode100% operating factor
Data management status
Date of last data management03.05.2024
Article revision12
Insulation characteristics: Standards/regulations
InsulationBasic insulation
Overvoltage categoryIII
Pollution degree2
Electrical properties
Maximum power dissipation for nominal condition0.17 W
Test voltage (Input/output)2.5 kV AC (Input/output)
Input data
Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range19.2 V DC ... 28.8 V DC
Switching threshold "0" signal in reference to UN≤ 0.4
Switching threshold "1" signal in reference to UN≥ 0.8
Typical input current at UN7 mA
Typical response time40 µs
Typical turn-off time200 µs
Operating voltage displayYellow LED
Protective circuitReverse polarity protection
Transmission frequency300 Hz
Output data
Contact switching type1 N/O contact
Design of digital outputelectronic
Output voltage range3 V DC ... 30 V DC
Limiting continuous current3 A (see derating curve)
Voltage drop at max. limiting continuous current≤ 0.2 V
Output circuit2-conductor, floating
Protective circuitReverse polarity protection
Surge protection
Connection data
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 14
Tightening torque0.5 Nm
Dimensions
Width6.2 mm
Height80 mm
Depth56 mm
Material specifications
Colorgreen (RAL 6021)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulations
Standards/regulationsIEC 60947-5-1
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2964296 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 19.2 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 3 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
