View larger
Images are for illustrative purposes only. Please refer to data sheet for details

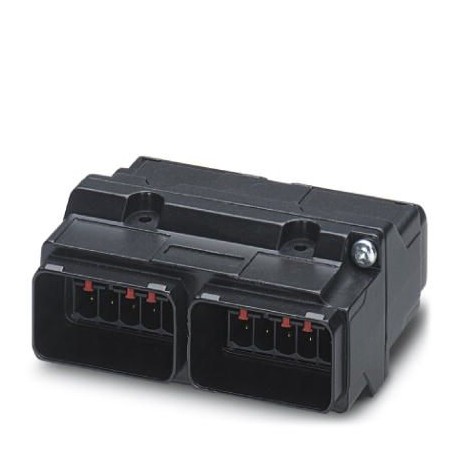

VS-PPC-J-4X-1227 1405387 PHOENIX CONTACT Power distributor
VS-PPC-J-4X-1227
1405387
PHOENIX CONTACT
1 Pcs.
Power distributor
H Power distributor, 4 MSTB contact inserts, metal housing, without fixing screws
Automation > Fibre optic attenuator
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1405387 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 369 (C-2-2017) |
| GTIN | 4046356419918 |
| Weight per Piece (excluding packing) | 133.600 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
General data
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
|---|---|
| Rated current at 40°C | 16 A |
| Rated voltage | 24 V |
| Number of positions | 5 |
| Degree of pollution | 2 |
| Alternative short product description | Power H distributor |
| Locking type | Push Pull |
| Rated voltage (II/2) | 630 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage | 250 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Rated current | 16 A |
| Rated voltage (III/3) | 24 V |
| Contact carrier material | PA |
| Contact surface material | Gold over nickel |
| Housing material | Zinc die-cast |
Environmental Product Compliance
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
|---|
