View larger
Images are for illustrative purposes only. Please refer to data sheet for details

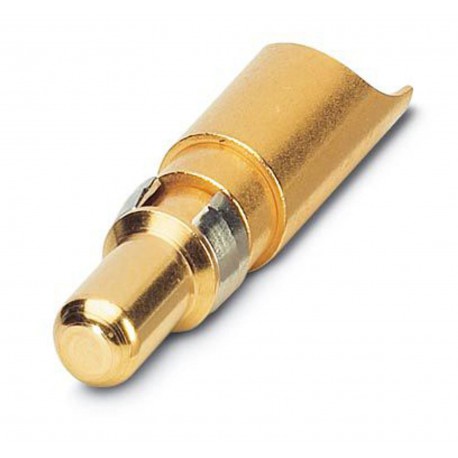

VS-ST-LK-3,6/22,4/4,6 1688269 PHOENIX CONTACT D-SUB power contact
VS-ST-LK-3,6/22,4/4,6
1688269
PHOENIX CONTACT
100 Pcs.
D-SUB power contact
Power contacts, for D-SUB combination inserts, male, straight solder cup, 40 A sizing current, gold
Power contacts, for D-SUB combination inserts, pin, solder cup, straight, rated current 40 A, gold-plated
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | Power contacts must be ordered separately since they are not included in the scope of supply of the contact carriers. |
Product properties
| Product type | Contacts |
| Type | Individual male contact |
| Contact material type | turned |
| Data management status | |
| Article revision | 02 |
Electrical properties
| Maximum load current | 40 A |
| Rated surge voltage | 1 kV |
| Rated current | 40 A (at 20 °C) |
| Insulation resistance | ≥ 5 GΩ |
| Test voltage | 1000 V |
Connection data
| Maximum load current | 40 A |
| Connection method | Solder cup |
Dimensions
| Width | 5.5 mm |
| Height | 5.5 mm |
| Length | 22.9 mm |
| Mechanical characteristics | |
| Contact diameter | 4.6 mm |
Material specifications
| Material | Metal |
| Contact material | Copper alloy |
| Contact surface material | Au/Sn |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Insertion force per signal contact | ≤ 7.00 N |
| Extraction force per signal contact | approx. 5 N |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 130 °C |
Mounting
| Mounting type | Solder connection |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 130 °C |
| Diameter plug-in contact (EF007320) | 4.6 mm |
| Material contact (EF007544) | Copper |
| Min. number of insertion cycles (EF012212) | 500 |
