View larger
Images are for illustrative purposes only. Please refer to data sheet for details

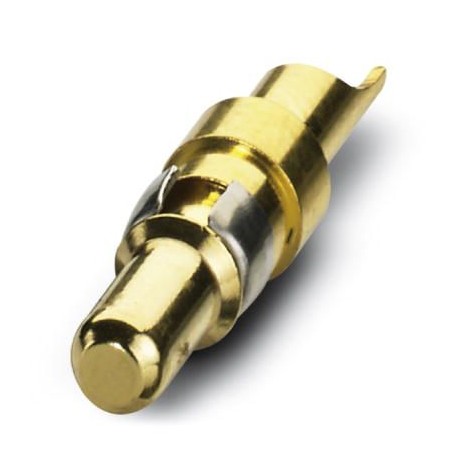

VS-ST-LK-3,6/22,4/2,6 1688243 PHOENIX CONTACT D-SUB power contact
VS-ST-LK-3,6/22,4/2,6
1688243
PHOENIX CONTACT
100 Pcs.
D-SUB power contact
Power contacts, for D-SUB combination inserts, male, straight solder cup, 20 A sizing current, gold-plated
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1688243 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 447 (C-2-2017) |
| GTIN | 4017918179649 |
| Weight per Piece (excluding packing) | 2.050 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Insertion/withdrawal cycles | ≥ 500 |
|---|---|
| Connection method | Solder cup |
| Type of contact | Pin |
| Conductor cross section | 2 mm² ... 3.5 mm² |
| Connection cross section AWG | 14 ... 12 |
| Insertion force per signal contact | ≤ 7.00 N |
| Extraction force per signal contact | approx. 5 N |
| Insulation resistance | ≥ 5 GΩ |
| Contact type | turned |
| Note | Power contacts must be ordered separately since they are not included in the scope of supply of the contact carriers. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 130 °C |
| Diameter plug-in contact (EF007320) | 2.6 mm |
| Material contact (EF007544) | Copper |
| Min. number of insertion cycles (EF012212) | 500 |
