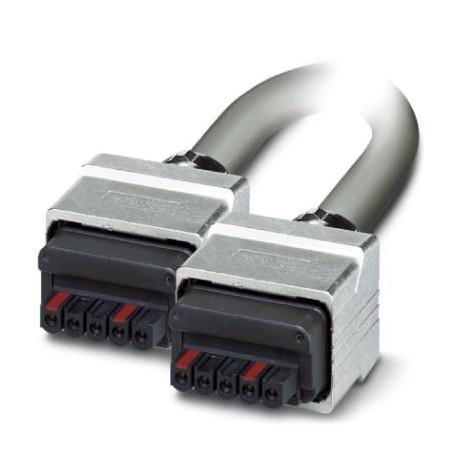

VS-P1220-P1220-C1020/ 2,0 1609183 PHOENIX CONTACT Cable
VS-P1220-P1220-C1020/ 2,0
1609183
PHOENIX CONTACT
1 Pcs.
Cable
Ready-made PROFINET power cable, 24 V, 5 x 2.5 mm², flexible (50 wires), color RAL 7001 (silver gray), PPC-MSTB metal to PPC-MSTB metal, length: 2 m
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1609183 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 370 (C-2-2017) |
| GTIN | 4046356160100 |
| Weight per Piece (excluding packing) | 470.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -40 °C ... 70 °C (cable, fixed installation) |
| -5 °C ... 70 °C (cable, flexible installation) | |
| Plug / socket |
General data
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
|---|---|
| Rated voltage | 24 V |
| Number of positions | 5 |
| Alternative short product description | PROFINET power cable |
| Locking type | Push Pull |
| Rated voltage (III/3) | 24 V |
| Contact material | Copper alloy |
| Contact carrier material | PA |
| Contact surface material | Gold over nickel |
| Housing material | Zinc die-cast |
Cable
| Cable type | PVC gray |
|---|---|
| Cable type (abbreviation) | PVC |
| Conductor cross section | 5x 2.5 mm² |
| AWG power supply | 14 |
| Conductor structure, voltage supply | 50x 0.25 mm |
| Wire colors | blue, brown, black, gray, green/yellow |
| Overall twist | 5 cores, twisted |
| External sheath, color | gray RAL 7001 |
| External cable diameter D | 11.8 mm |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 15 x D |
| Cable weight | 242 kg/km |
| Outer sheath, material | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | > 0.2 MΩ*km |
| Nominal voltage, cable | 750 V |
| 1000 V (Fixed, protected installation) | |
| Test voltage, cable | 4000 V |
| Flame resistance | according to IEC 60332-1-2 |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -5 °C ... 70 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
