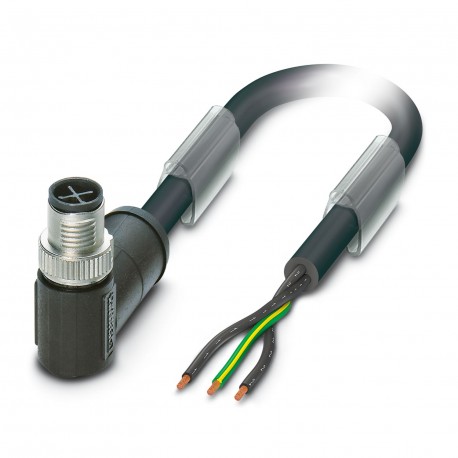

PHOENIX CONTACT SAC-3P-M12MRS/10,0-PVC PE SAC-3P-M12MRS/10,0-PVC PE 1411643 PHOENIX CONTACT Power cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P-M12MRS/10,0-PVC PE 1411643 PHOENIX CONTACT Power cable

SAC-3P-M12MRS/10,0-PVC PE

1411643

PHOENIX CONTACT

1 Pcs.

Power cable Power cable, 3-pole, M12 angled connector, coding: S, to free cable end, cable length: 10 m, for alternating current up to 16 A/250 V Power cable, 3-position, PVC, black, Plug angled M12, coding: S, on free cable end, cable length: 10 m, For alternating current up to 16 A/690 V

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePower cable
ApplicationPower supply
Number of positions3
No. of cable outlets1
Shieldedno
CodingS
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Material specifications
Flammability rating according to UL 94V0
Material of grip bodyPP
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN690 V AC
Nominal current IN16 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles> 100
Connector
Connection 1
TypePlug angled M12
Coding typeS (Power)
Connection 2
Typefree cable end
Cable/line
Cable length10 m
PVC black [PVC]
Dimensional drawingbndzhxbtsi.jpg
Cable weight80 kg/km
UL AWM Style2517 (105 °C / 300 V)
Number of positions3
Shieldedno
Cable typePVC black [PVC]
Conductor cross section3x 1.5 mm²
Wire diameter incl. insulation2.4 mm ±0.1 mm
External cable diameter6.80 mm ±0.2 mm
Outer sheath, materialPVC
External sheath, colorblack
Conductor materialBare Cu litz wires
Material wire insulationPVC
Single wire, colorblack 1, black 2, green/yellow
Overall twist3 wires, twisted
Max. conductor resistance≤ 13.3 Ω/km (at 20 °C)
Insulation resistance≥ 10 MΩ*km (at 20 °C)
Nominal voltage, cable300 V AC
Test voltage2000 V AC
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation12 x D
Smallest bending radius, fixed installation34 mm
Smallest bending radius, movable installation82 mm
Flame resistanceaccording to IEC 60332-1
According to DIN EN 60332-1-2
According to VW-1
According to FT1
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 90 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67 (without preloading, as additional test in accordance with IEC 60529)
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Standards and regulations
Standard designationM12 connector
Standards/specificationsIEC 61076-2-111
