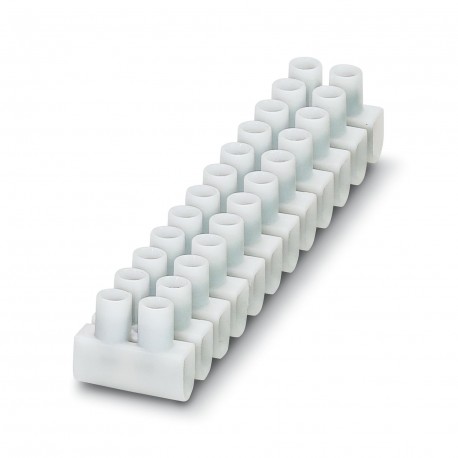

EC 4 3240168 PHOENIX CONTACT Europe connectors
EC 4
3240168
PHOENIX CONTACT
10 Pcs.
Europe connectors
Europa terminal block made of polypropylene, white, for connecting rigid and flexible conductors with and without ferrules with a cross-section of 0.5 to 4 mm²
Polypropylene Europe terminal strip, white, for connecting solid conductors and stranded conductors with and without ferrules with a cross section of 0.5 to 4 mm2
Automation > Single- and multi-pole terminal strip
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Europe connector |
| Number of positions | 12 |
| Pitch | 8.1 mm |
| Number of connections | 24 |
| Number of rows | 1 |
Electrical properties
| Maximum power dissipation for nominal condition | 1.02 W |
Connection data
| Nominal cross section | 4 mm² |
| Screw thread | M2,6 |
| Tightening torque | 0.4 ... 0.5 Nm |
| Stripping length | 5 mm |
| Conductor cross section rigid | 0.5 mm² ... 4 mm² |
| Cross section AWG | 20 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.5 mm² ... 4 mm² |
| Conductor cross section, flexible [AWG] | 20 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 2.5 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.75 mm² ... 2.5 mm² |
| 2 conductors with same cross section, solid | 0.5 mm² ... 1 mm² |
| 2 conductors with same cross section, flexible | 1 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² |
| Nominal current | 32 A (with 4 mm² conductor cross section) |
| Maximum load current | 32 A (with 4 mm² conductor cross section) |
| Nominal voltage | 450 V (Only use up to 250 V without securing.) |
| Nominal cross section | 4 mm² |
Dimensions
| Width | 16.6 mm |
| Height | 13 mm |
| Depth | 16.6 mm |
| Drill hole spacing | 8.1 mm |
| Pitch | 8.1 mm |
Material specifications
| Color | white |
| Flammability rating according to UL 94 | - |
| Insulating material | PP |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
| Technical data | |
| Drill hole spacing | 8.1 mm |
Mounting
| Mounting type | direct screw connection |
