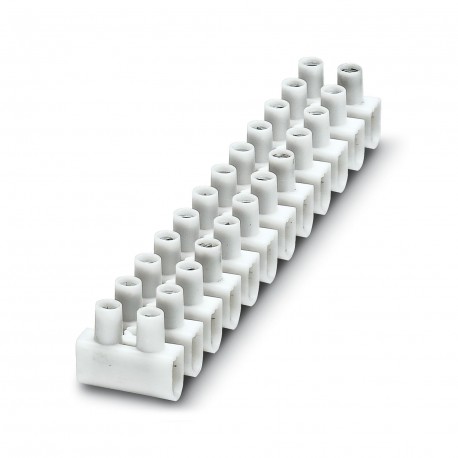

EC 16 3240179 PHOENIX CONTACT Europe connectors
EC 16
3240179
PHOENIX CONTACT
10 Pcs.
Europe connectors
Europa terminal block made of polypropylene, white, for connecting rigid and flexible conductors with and without ferrules with a cross-section of 1.5 to 16 mm²
Polypropylene Europe terminal strip, white, for connecting solid conductors and stranded conductors with and without ferrules with a cross section of 1.5 to 16 mm2
Automation > Single- and multi-pole terminal strip
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Europe connector |
| Number of positions | 12 |
| Pitch | 15 mm |
| Number of connections | 24 |
| Number of rows | 1 |
Electrical properties
| Maximum power dissipation for nominal condition | 2.43 W |
Connection data
| Nominal cross section | 16 mm² |
| Screw thread | M4 |
| Tightening torque | 1.2 ... 1.5 Nm |
| Stripping length | 8 mm |
| Conductor cross section rigid | 1.5 mm² ... 16 mm² |
| Cross section AWG | 14 ... 6 (converted acc. to IEC) |
| Conductor cross section flexible | 2.5 mm² ... 16 mm² |
| Conductor cross section, flexible [AWG] | 14 ... 6 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 2.5 mm² ... 10 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 2.5 mm² ... 10 mm² |
| 2 conductors with same cross section, solid | 2.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible | 2.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 1.5 mm² ... 2.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1 mm² ... 4 mm² |
| Nominal current | 76 A (with 16 mm² conductor cross section) |
| Maximum load current | 76 A (with 16 mm² conductor cross section) |
| Nominal voltage | 450 V |
| Nominal cross section | 16 mm² |
Dimensions
| Width | 20.7 mm |
| Height | 25 mm |
| Depth | 20.7 mm |
| Drill hole spacing | 15 mm |
| Pitch | 15 mm |
Material specifications
| Color | white |
| Flammability rating according to UL 94 | - |
| Insulating material | PP |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
| Technical data | |
| Drill hole spacing | 15 mm |
Mounting
| Mounting type | direct screw connection |
