View larger
Images are for illustrative purposes only. Please refer to data sheet for details

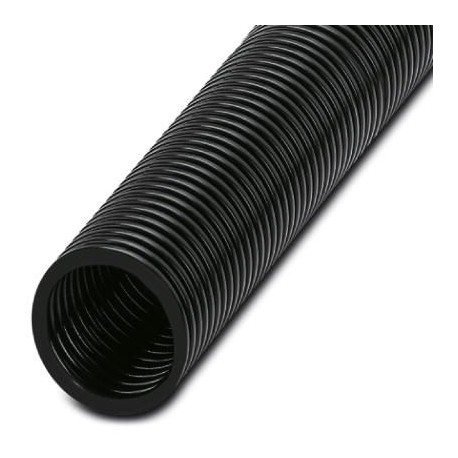

WP-PA HF 34,5 BK 3241088 PHOENIX CONTACT Protective hose
WP-PA HF 34,5 BK
3241088
PHOENIX CONTACT
25 Pcs.
Protective hose
Protection tube, material: PA 6, spiral: without, UV resistant: yes, flexible, protection index: IP68, color: black, flammability class according to UL94: V0, inner diameter: 29 mm, Total length: 25 m
Automation > Protective plastic hose
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3241088 |
|---|---|
| Packing unit | 25 M |
| Minimum order quantity | 25 M |
| Catalog page | Page 629 (C-3-2017) |
| GTIN | 4046356736527 |
| Weight per Piece (excluding packing) | 130.400 g |
| Custom tariff number | 39173200 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 115 °C |
|---|---|
| Short-term temperature | 150 °C |
| Degree of protection | IP67 |
General
| Color | black |
|---|---|
| Type | Helically corrugated plastic hose |
| Components | free from silicone, halogen, and cadmium |
| Flammability rating according to UL 94 | V0 |
| Material | PA |
| Bending radius, static | 65 mm |
| Bending radius, dynamic | 120 mm |
| Tensile strength | 100 N |
Standards and Regulations
| Resistance to UV radiation | yes |
|---|---|
| Halogen-free | yes |
| Connection in acc. with standard | UL |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141131eCl@ss 4.127141131eCl@ss 5.027141131eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027430304eCl@ss 8.027430304eCl@ss 9.027430304
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 34.5 mm |
| Outer diameter (EF000015) | 34.5 mm |
| Inner diameter (EF000065) | 29 mm |
| Material (EF002169) | Polyamide (PA) |
| Sheathing material (EF001745) | Other |
| Operating temperature (EF001742) | -40 °C |
| Degree of protection (IP) (EF005474) | IP68 |
| Tensile strength (EF002782) | 100 N |
| Bending radius, static (EF001744) | 65 mm |
| Halogen free (EF000025) | Yes |
| Plain interior (EF001769) | No |
| Plain exterior (EF002479) | No |
| Flexibility (EF001770) | Flexible |
| Colour (EF000007) | Black |
| Approved according to DIN EN 61386-23 (EF008144) | No |
| Approved according to UR (EF001772) | No |
| Approved according to N (EF001773) | No |
| Approved according to CSA (EF001784) | No |
