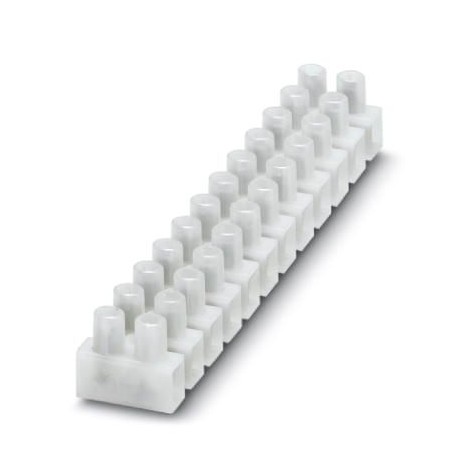

EC 16 P TR 3240182 PHOENIX CONTACT Europe connectors
EC 16 P TR
3240182
PHOENIX CONTACT
10 Pcs.
Europe connectors
Europa terminal block made of polyamide, transparent, with wire protection, for connecting rigid and flexible conductors with and without ferrules with a cross-section of 6 to 16 mm²
Automation > Single- and multi-pole terminal strip
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240182 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 601 (C-3-2017) |
| GTIN | 4046356457934 |
| Weight per Piece (excluding packing) | 83.590 g |
| Custom tariff number | 85369010 |
| Country of origin | AT (Austria) |
General
| Number of positions | 12 |
|---|---|
| Number of levels | 1 |
| Number of connections | 24 |
| Nominal cross section | 16 mm² |
| Color | transparent |
| Insulating material | PA |
| Flammability rating according to UL 94 | V2 |
| Ambient temperature (operation) | -40 °C ... 110 °C |
| Maximum load current | 76 A (with 16 mm² conductor cross section) |
| Nominal current IN | 76 A (with 16 mm² conductor cross section) |
| Nominal voltage UN | 450 V |
| Open side panel | No |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M4 |
| Stripping length | 8 mm |
| Tightening torque, min | 1.2 Nm |
| Tightening torque max | 1.5 Nm |
| Conductor cross section solid min. | 6 mm² |
| Conductor cross section solid max. | 16 mm² |
| Conductor cross section AWG min. | 10 |
| Conductor cross section AWG max. | 6 |
| Conductor cross section flexible min. | 6 mm² |
| Conductor cross section flexible max. | 16 mm² |
| Min. AWG conductor cross section, flexible | 10 |
| Max. AWG conductor cross section, flexible | 6 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 10 mm² |
| 2 conductors with same cross section, solid min. | 1.5 mm² |
| 2 conductors with same cross section, solid max. | 4 mm² |
| 2 conductors with same cross section, stranded min. | 2.5 mm² |
| 2 conductors with same cross section, stranded max. | 4 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 2.5 mm² |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V2 |
