View larger
Images are for illustrative purposes only. Please refer to data sheet for details

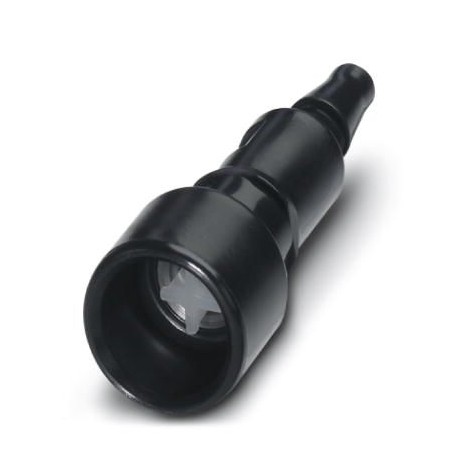

HC-M-PN3-3,00-BU-V 1663556 PHOENIX CONTACT Pneumatic contact
HC-M-PN3-3,00-BU-V
1663556
PHOENIX CONTACT
10 Pcs.
Pneumatic contact
Female connector for pneumatics with valve, for HC-M-PN3 module, inner diameter of flexible tube 3.0 mm
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1663556 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 583 (C-2-2017) |
| GTIN | 4017918123369 |
| Weight per Piece (excluding packing) | 0.920 g |
| Custom tariff number | 39174000 |
| Country of origin | CN (China) |
Mechanical characteristics
| Contact diameter | 5.2 mm |
|---|---|
| Operating pressure | 8.00 bar |
| Internal diameter of pressure hose connection | 3 mm |
| Insertion/withdrawal cycles | ≥ 500 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127440192eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440192
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Bus |
| Ambient temperature (EF002386) | 80 °C |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0 mm² |
| Type of electric connection (EF003961) | Other |
| Diameter plug-in contact (EF007320) | 5.2 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Min. number of insertion cycles (EF012212) | 500 |
