View larger
Images are for illustrative purposes only. Please refer to data sheet for details

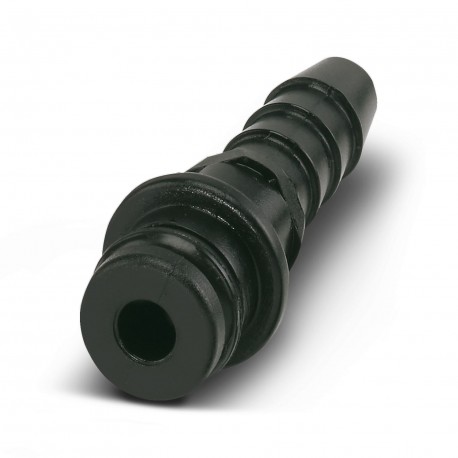

HC-M-PN3-4,00-ST 1663501 PHOENIX CONTACT Pneumatic contact
HC-M-PN3-4,00-ST
1663501
PHOENIX CONTACT
10 Pcs.
Pneumatic contact
Pneumatic plug, for HC-M-PN3 module, 4.0 mm hose inner diameter
Pneumatic pin, for HC-M-PN3 module, internal hose diameter of 4.0 mm
Connectors > Contact for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Pneumatic contact |
| Series | HC-M-03-PN |
| Type | Individual male contact |
| Integrated valve | No |
| Data management status | |
| Article revision | 02 |
Connection data
| Connection technology | |
| Connection technology | Hose connection |
Dimensions
| Dimensional drawing |  |
| Width | 8.2 mm |
| Height | 8.2 mm |
| Depth | 22.7 mm |
| Diameter | 4 mm |
| Mechanical characteristics | |
| Internal diameter of pressure hose connection | 4 mm |
| Contact diameter | 5.2 mm |
Material specifications
| Material Valve | Polypropylene |
| Seal material | Buna-N |
| Contact material | Delrin acetal |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
Characteristics
| Operating pressure | 8.00 bar |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 80 °C |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0 mm² |
| Type of electric connection (EF003961) | Other |
| Diameter plug-in contact (EF007320) | 5.2 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Min. number of insertion cycles (EF012212) | 500 |
