View larger
Images are for illustrative purposes only. Please refer to data sheet for details

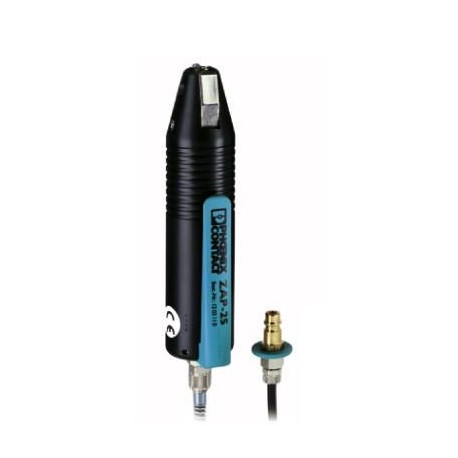

ZAP 25 1203110 PHOENIX CONTACT Pneumatic crimping tool
ZAP 25
1203110
PHOENIX CONTACT
1 Pcs.
Pneumatic crimping tool
Pneumatically operated crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross-section of 0.25 - 2.5 mm²
Tools > Stripping and crimping machine
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1203110 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 508 (C-3-2017) |
| GTIN | 4017918018085 |
| Weight per Piece (excluding packing) | 761.900 g |
| Custom tariff number | 84671900 |
| Country of origin | DE (Germany) |
General
| Compression | trapezoidal |
|---|---|
| Min. AWG, flexible, multi-strand | 14 |
| AWG max., flexible, multi-strand | 24 |
| Pressure range | 4 bar ... 6 bar |
| Air consumption per compression | 0.2 l |
| Power consumption | 0 W |
| Weight | 0.4 kg |
| Min. cross section | 0.25 mm² |
| Max. cross section | 2.5 mm² |
Classifications
eCl@ss 10.0.117130101eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.117130100eCl@ss 6.017130100eCl@ss 7.017130101eCl@ss 8.017130101eCl@ss 9.017130101
| Feature Name | Feature Value |
|---|---|
| Adjustable conductor cross section (EF008548) | 0.25 mm² |
| Function (EF000030) | Other |
| Type of drive (EF001422) | Pneumatic |
| Strip length (EF006824) | 0 mm |
| Strip length adjustable (EF006222) | No |
| Width (EF000008) | 44 mm |
| Height (EF000040) | 44 mm |
| Depth (EF000049) | 200 mm |
