View larger
Images are for illustrative purposes only. Please refer to data sheet for details

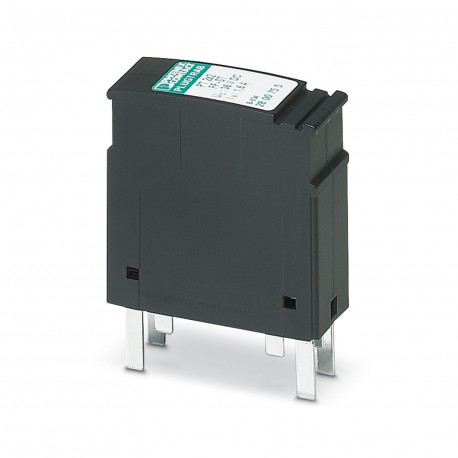

PT 2X2-FF-ST 2800755 PHOENIX CONTACT Surge protection plug
PT 2X2-FF-ST
2800755
PHOENIX CONTACT
1 Pcs.
Surge protection plug
PLUGTRAB, Plug-in Surge Protection for Foundation Fieldbus
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Surge protection for information technology |
| Product family | PLUGTRAB PT |
| IEC test classification | C1 |
| C2 | |
| C3 | |
| D1 | |
| VDE requirement class | C1 |
| C2 | |
| C3 | |
| D1 | |
| Type | Male |
| Number of positions | 5 |
| Surge protection fault message | none |
| Wire pairs per module | 2 |
| Data management status | |
| Article revision | 09 |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 32 V DC |
Connection data
| Connection method | Screw connection (in connection with the base element) |
Dimensions
| Dimensional drawing |  |
| Width | 17.7 mm |
| Height | 45 mm |
| Depth | 52 mm |
| Horizontal pitch | 1 Div. |
| Complete module width | 17.7 mm |
| Complete module height | 90 mm |
| Complete module depth | 65.5 mm |
Material specifications
| Color | black (RAL 9005) |
| black (RAL 9005) | |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Maximum continuous voltage UC | 36 V DC |
| Rated current | 1.6 A |
| Operating effective current ICat UC | ≤ 5 µA |
| Residual current IPE | ≤ 5 µA (with PT 4-BE) |
| Nominal discharge current In(8/20) µs (line-line) | 100 A |
| Nominal discharge current In(8/20) µs (line-ground) | 10 kA |
| Pulse discharge current Iimp(10/350) µs | 1 kA |
| Max. discharge current Imax(8/20) µs maximum (line-line) | 100 A |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 23 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 75 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 1.3 kV (with PT 4-BE) |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 75 V |
| Voltage protection level Up(line-line) | ≤ 75 V (C3 - 25 A) |
| Voltage protection level Up(line-earth) | ≤ 1.3 kV (C1 - 1.5 kV) |
| ≤ 1.3 kV (C2 - 9 kV) | |
| ≤ 1.3 kV (D1 - 500 A) | |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Resistance per path | ≤ 1 Ω |
| Surge protection fault message | none |
| Impulse durability (line-line) | C3 - 25 A |
| Impulse durability (line-earth) | C1 - 1 kV / 500 A |
| C2 - 10 kV / 5 kA | |
| D1 - 500 A |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m (amsl) |
Standards and regulations
| VDE requirement class | C1 |
| C2 | |
| C3 | |
| D1 | |
| Air clearances and creepage distances | |
| Standards/regulations | DIN VDE 0110-1 / IEC 60664-1 |
| Standards/specifications | EN 61643-21/A1 |
| Note | 2009 |
Mounting
| Mounting type | on base element |
| Feature Name | Feature Value |
|---|---|
| Nominal voltage AC (EF008798) | 32 V |
