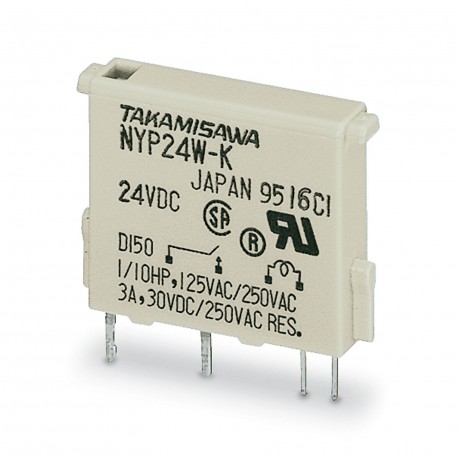

REL-MR-G 24/1 2961037 PHOENIX CONTACT Single relay
REL-MR-G 24/1
2961037
PHOENIX CONTACT
8 Pcs.
Single relay
Replacement plug-in miniature relay, 1 open contact, input voltage 24 V DC
Spare miniature relay, 1 locking contact, 24 V DC input voltage
Automation > Switching relay
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2961037 |
|---|---|
| Packing unit | 8 pc |
| Minimum order quantity | 8 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 536 (C-5-2017) |
| GTIN | 4017918087074 |
| Weight per Piece (excluding packing) | 4.390 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Coil side
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Typical input current at UN | 5 mA |
| Typical response time | 5 ms |
| Typical release time | 2 ms |
| Coil resistance | 4800 Ω ±10 % |
| Power dissipation for nominal condition | 0.12 W |
Contact side
| Contact type | 1 N/O contact |
|---|---|
| Type of switch contact | Double contact |
| Contact material | AgNi, hard gold-plated |
| Maximum switching voltage | 250 V AC |
| 125 V DC | |
| Minimum switching voltage | 5 V DC |
| Min. switching current | 1 mA |
| Maximum inrush current | 5 A |
| Limiting continuous current | 3 A |
| Interrupting rating (ohmic load) max. | 72 W (at 24 V DC) |
| 60 W (at 48 V DC) | |
| 50 W (at 60 V DC) | |
| 50 W (at 110 V DC) | |
| 750 VA (for 230 V AC) |
General
| Test voltage relay winding/relay contact | 2 kV AC (50 Hz, 1 min.) |
|---|---|
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 107cycles |
| Mounting position | any |
| Net weight (SAP) | 4.387 g |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Complete with socket (EF003359) | No |
| With detachable clamps (EF003340) | No |
| With LED indication (EF005950) | No |
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Voltage type for actuating (EF008242) | DC |
| Drive, polarization (EF003355) | Polarity free |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of switch contact (EF003358) | Double contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Gold |
| Nominal current (EF000001) | 0.005 A |
| Width (EF000008) | 5 mm |
| Height (EF000040) | 23 mm |
| Depth (EF000049) | 17 mm |
