REL-MR- 24DC/1IC 2961341 PHOENIX CONTACT Single relay

REL-MR-24DC/1IC

2961341

PHOENIX CONTACT

10 Pcs.

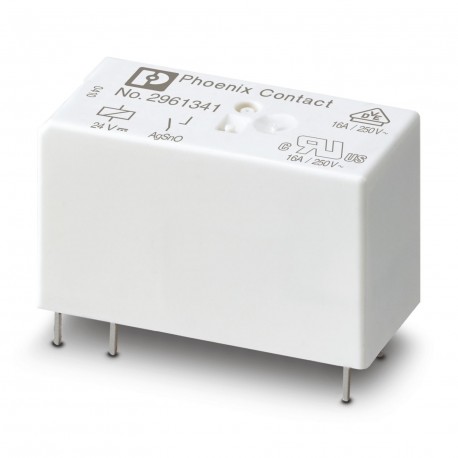

Single relay Plug-in miniature power relay, with power contact for high input currents up to 130 A Peak, 1 normally open contact, input voltage 24 V DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2961341
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 393 (C-5-2017)
GTIN4017918187569
Weight per Piece (excluding packing)12.820 g
Custom tariff number85366990
Country of originAT (Austria)

Dimensions

Width12.7 mm
Height29 mm
Depth15.7 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Maximum altitude≤ 2000 m

Coil side

Nominal input voltage UN24 V DC
Input voltage range in reference to UNsee diagram
Typical input current at UN17 mA
Typical response time8 ms
Typical release time3 ms
Coil resistance1440 Ω ±10 % (20 °C)
Power dissipation for nominal condition0.41 W

Contact side

Contact type1 N/O contact
Type of switch contactSingle contact
Contact materialAgSnO
Maximum switching voltage250 V AC/DC
Minimum switching voltage12 V (100 mA)
Min. switching current100 mA (at 12 V DC)
Maximum inrush current80 A (20 ms)
130 A (peak, at capacitive load, 230 V AC, 24 μF)
Limiting continuous current16 A
Interrupting rating (ohmic load) max.384 W (at 24 V DC)
58 W (at 48 V DC)
48 W (at 60 V DC)
50 W (at 110 V DC)
80 W (at 220 V DC)
4000 VA (for 250 V AC)
Switching capacity min.1200 mW
Switching capacity2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.2 A (at 250 V, DC13)
6 A (at 24 V, AC15)
6 A (at 120 V, AC15)
6 A (at 250 V, AC15)
Motor load according to UL 5081/2 HP, 120 V AC (N/O contact)
1 HP, 250 V AC (N/O contact)

General

Test voltage relay winding/relay contact5 kV AC (50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionRT II (flux-proof)
Mechanical service life3x 107cycles
Mounting positionany
Assembly instructionsCan be aligned without spacing (> 70 °C ≥ 2.5 mm)
Net weight (SAP)12.815 g

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsEN 50178
EN 61810-1
Rated insulation voltage250 V AC
Rated surge voltage6 kV
InsulationSafe isolation, reinforced insulation
Degree of pollution3
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2961341 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) No
With detachable clamps (EF003340) No
With LED indication (EF005950) No
Rated control supply voltage DC (EF003980) 19.2 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarity free
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as change-over contact (EF008257) 0
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.017 A
Degree of protection (IP) (EF005474) Other
Width (EF000008) 12.7 mm
Height (EF000040) 29 mm
Depth (EF000049) 15.7 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
