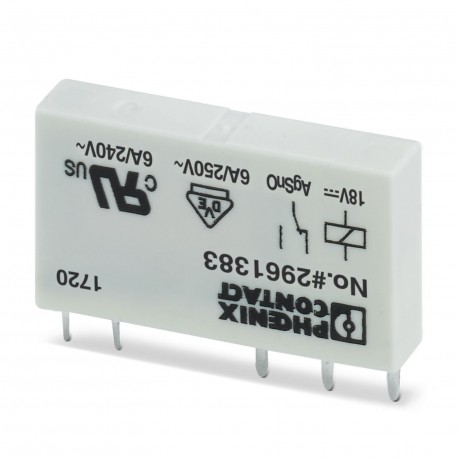

PHOENIX CONTACT REL-MR-18DC/21 REL-MR- 18DC/21 2961383 PHOENIX CONTACT Single relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

REL-MR- 18DC/21 2961383 PHOENIX CONTACT Single relay

REL-MR-18DC/21

2961383

PHOENIX CONTACT

10 Pcs.

Single relay Pluggable miniature power relay, with power contact, 1 switched contact, input voltage 18 V DC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2961383
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 392 (C-5-2017)
GTIN4017918936419
Weight per Piece (excluding packing)6.680 g
Custom tariff number85364190
Country of originCZ (Czech Republic)

Dimensions

Width5 mm
Height28 mm
Depth15 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN18 V DC
Typical input current at UN9 mA
Typical response time5 ms
Typical release time2.5 ms
Coil resistance1906 Ω ±10 % (at 20 °C)
Power dissipation for nominal condition0.16 W

Contact side

Contact type1 PDT
Type of switch contactSingle contact
Contact materialAgSnO
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (at 100 mA)
Min. switching current10 mA (at 12 V)
Maximum inrush current10 A (4 s)
Limiting continuous current6 A
Interrupting rating (ohmic load) max.140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC)
Switching capacity2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15)
Motor load according to UL 5081/4 HP, 240 - 277 V AC (N/O contact)
1/6 HP, 240 - 277 V AC (N/C contact)

General

Operating mode100% operating factor
Degree of protectionRT III (wash-proof)
Mechanical service life2x 107cycles
Net weight (SAP)6.68 g

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
EN 50178
EN 61810-1
Degree of pollution3
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2961383 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) No
With detachable clamps (EF003340) No
With LED indication (EF005950) No
Rated control supply voltage DC (EF003980) 10.8 V
Voltage type for actuating (EF008242) DC
Drive, polarization (EF003355) Polarity free
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.009 A
Degree of protection (IP) (EF005474) Other
Width (EF000008) 5 mm
Height (EF000040) 28 mm
Depth (EF000049) 15 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
