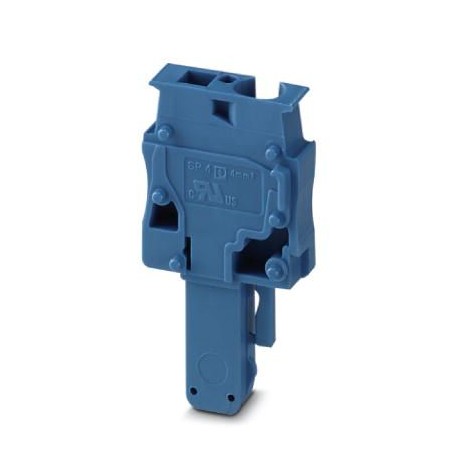

SP 4/ 1-R BU 3042829 PHOENIX CONTACT Plug

SP 4/ 1-R BU

3042829

PHOENIX CONTACT

50 Pcs.

Plug Connector, rated voltage: 800 V, rated current: 32 A, number of poles: 1, connection type: Spring connection, Sizing cross-section: 4 mm², cross-section: 0.08 mm²- 6 mm², color: blue

Connectors > Terminal block connector
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3042829
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 333 (C-1-2017)
GTIN4017918956127
Weight per Piece (excluding packing)4.730 g
Custom tariff number85366990
Country of originPL (Poland)

General

Number of positions1
Number of levels1
Number of connections1
Nominal cross section4 mm²
Colorblue
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Machine building
Plant engineering
Maximum load current32 A (with 6 mm² conductor cross section)
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.02 W
Maximum load current32 A (with 6 mm² conductor cross section)
Nominal current IN32 A
Nominal voltage UN800 V
Open side panelNo

Dimensions

Width6.2 mm
Length21 mm
Height41.5 mm
24 mm
Pitch6.2 mm

Connection data

Connection methodSpring-cage connection
Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 61984
Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.10
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.4 mm²
Min. AWG conductor cross section, flexible28
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²
Internal cylindrical gageA4

Standards and Regulations

Connection in acc. with standardCSA
IEC 61984
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3042829 Terminal blocks (EC002021)
Feature Name Feature Value
Model (EF000010) Pin insert
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section solid-core (EF007337) 0.08 mm²
Connectable conductor cross section multi-wired (EF007343) 0.08 mm²
Width (EF000008) 6.15 mm
Connectable (EF006169) No
Number of poles (EF001391) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
