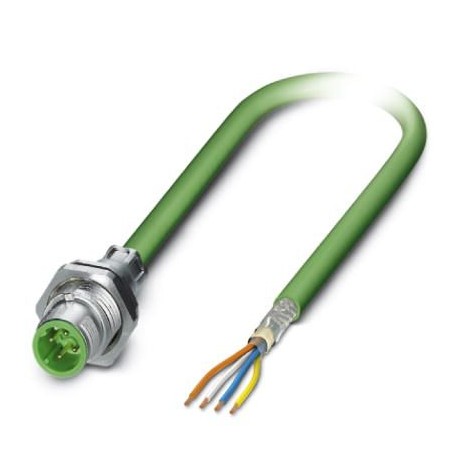

PHOENIX CONTACT SACCBP-MSD-4CON-PG9/5,0-933SCO SACCBP-MSD-4CON-PG9/5,0-933SCO 1437834 PHOENIX CONTACT Bus system flush-type plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACCBP-MSD-4CON-PG9/5,0-933SCO 1437834 PHOENIX CONTACT Bus system flush-type plug

SACCBP-MSD-4CON-PG9/5,0-933SCO

1437834

PHOENIX CONTACT

1 Pcs.

Bus system flush-type plug Built-in mounting plug for bus system, PROFINET, 4 poles, M12, shielded, D-coded, SPEEDCON, rear wall mounting/screw-on mounting with Pg9 thread, with 5.0 m bus cable, 2 x 2 x 0.34 mm²

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1437834
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 307 (PC-2011)
GTIN4046356458573
Weight per Piece (excluding packing)371.000 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable5 m

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C (cable, fixed installation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C4 A
Rated voltage250 V
Rated surge voltage2.5 kV
Number of positions4
Insulation resistance≥ 100 MΩ
CodingD - data
Signal type/categoryPROFINET CAT5 (IEC 11801:2002)
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque2 Nm ... 3 Nm (Installation-side)

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Sealing materialFKM

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Cable typePROFINET PVC stranded CAT5
Cable type (abbreviation)93B
UL AWM style21694
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT®CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.55 mm
Wire colorsWhite, yellow, blue, orange
Overall twistStar quad
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering85 %
External sheath, colorgreen RAL 6018
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation3 x D
Minimum bending radius, flexible installation7 x D
Cable weight67 kg/km
Outer sheath, materialPVC
Material, inner sheathPVC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 120.00 Ω/km
Wave impedance100 Ω ±15 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20 МHz)
60 dB (at 31.25 МHz)
55 dB (at 62.5 МHz)
50 dB (at 100 MHz)
Attenuation2.1 dB (with 1 MHz)
4 dB (at 4 МHz)
6.3 dB (at 10 MHz)
8 dB (at 16 MHz)
9 dB (at 20 МHz)
11.4 dB (at 31.25 МHz)
16.5 dB (at 62.5 МHz)
21.3 dB (at 100 MHz)
Signal speed0.66 c
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 MHz)
Nominal voltage, cable600 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceaccording to UL 1685 (CSA FT 4)
Resistance to oilResistant to oil to a limited extent
Other resistanceUV resistant According to UL 1581, Section 1200
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-50 °C ... 70 °C

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1437834 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 4
Type of housing (EF006980) Straight
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 250 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Nickel
Housing material (EF001596) Plastic
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) Yes
With status indication (EF001602) No
