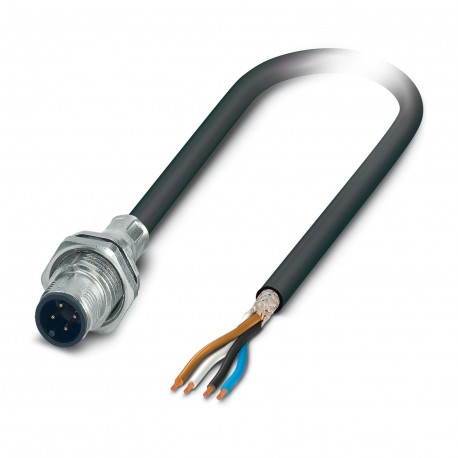

PHOENIX CONTACT SACCBP-MS-4CON-M16/1,0-PUR SCO SACCBP-MS-4CON-M16/1,0-PUR SCO 1419399 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACCBP-MS-4CON-M16/1,0-PUR SCO 1419399 PHOENIX CONTACT Flush-type connector

SACCBP-MS-4CON-M16/1,0-PUR SCO

1419399

PHOENIX CONTACT

1 Pcs.

Flush-type connector Conect. plug. to be apar. wall poster., Universal, 4-pole, PUR, grayish black RAL 7021, shielded, Male connector, straight, M12-SPEEDCON, coding: A, at free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, halogen-free PUR black, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239252

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1419399
Packing unit1 pc
Catalog pagePage 46 (C-2-2017)
GTIN4046356533249
Weight per Piece (excluding packing)60.000 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable1 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C4 A
Rated voltage250 V
Rated surge voltage2.5 kV
Number of positions4
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodIndividual wires
Insertion/withdrawal cycles> 100
Torque3 Nm ... 4 Nm (Installation-side)
Mounting typeRear mounting M16 x 1.5 With flat nut

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Cable

Cable typePUR halogen-free black
Cable abbreviationLi9Y-V1-C-V1-11Y
Conductor cross section0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.2 mm ±0.07 mm
Thickness, insulation0.21 mm
Wire colorsbrown, white, blue, black
Overall twist4 wires, twisted
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack-gray RAL 7021
External cable diameter5.90 mm
Cable weight47 kg/km
Outer sheath, materialPUR
Conductor materialBare Cu litz wires
Standards/specificationsM12 connector IEC 61076-2-101
Insulation resistance≥ 20 MΩ*km
Conductor resistance≤ 57.6 mΩ/m
Nominal voltage, cable300 V
Test voltage, cable2000 V AC
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (cable, flexible installation)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1419399 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 4
Type of housing (EF006980) Straight
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 250 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Gold
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) Yes
With status indication (EF001602) No
