SACCBP-M12MSB-5CON-M16/2,0-900 1534520 PHOENIX CONTACT Bus system flat-type plug

SACCBP-M12MSB-5CON-M16/2,0-900

1534520

PHOENIX CONTACT

1 Pcs.

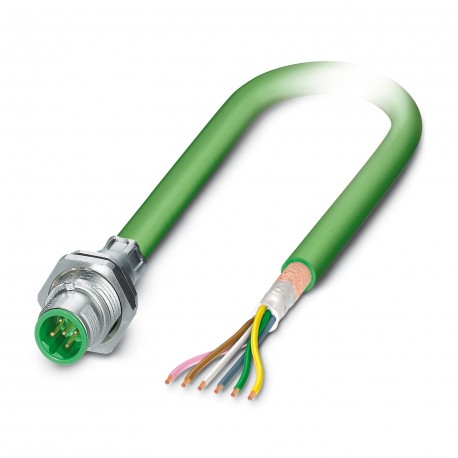

Bus system flat-type plug Conect. plug. to be apar. poster wall, INTERBUS (16 MBit/s), 5-pole, halogen-free PUR, Green RAL 6017, shielded, Male connector, straight, M12-SPEEDCON, coding: B, a free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, INTERBUS, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239941 Device connector rear wall, INTERBUS (16 Mbit/s), 5-pin, PUR halogen-free, green RAL 6017, shielded, pin, straight, M12-SPEEDCON, coding: B, on free end of line, rear wall mounting, M16 x 1.5, cable connection, cable length: 2 m, INTERBUS, alternative product according to RoHS II without exception 6c (Pb < 0.1 %) Item no.: 1239941

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1534520
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 425 (C-2-2017)
GTIN4046356026697
Weight per Piece (excluding packing)165.500 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable2 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP67

General

Rated current at 40°C4 A
Rated voltage60 V
Rated surge voltage1.5 kV
Number of positions5
Insulation resistance≥ 100 MΩ
CodingB - inverse
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Test voltage2500 V
Insertion/withdrawal cycles> 100
Torque2 Nm ... 3 Nm (Installation-side)

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material, knurlsNickel-plated brass
Sealing materialFKM

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typeINTERBUS
Cable type (abbreviation)900
Signal type/categoryINTERBUS
Cable structure3 x 2 x 0.22 mm²
Conductor cross section3x 2x 0.22 mm²
AWG signal line24
Conductor structure signal line32x 0.10 mm
Wire colorsGreen-yellow, white-brown, gray-pink
Twisted pairs2 cores to the pair
Overall twist3 pairs to the core
ShieldingBraided copper wires
External sheath, colormay green RAL 6017
External cable diameter D8 mm
Minimum bending radius, fixed installation7.5 x D
Minimum bending radius, flexible installation15 x D
Number of bending cycles5000000
Bending radius120 mm
Traversing path10 m
Traversing rate1.6 m/s
Acceleration3.2 m/s²
Cable weight70 kg/km
Outer sheath, materialPUR
Material conductor insulationPE
Conductor materialBare Cu litz wires
Insulation resistance≥ 5 GΩ*km
Loop resistance≤ 159.80 Ω/km
Cable capacity≤ 60 nF/km (At 800 Hz)
Wave impedance120 Ω ±20 % (at 64 kHz)
100 Ω ±15 % (with 1 MHz)
Near end crosstalk attenuation (NEXT)≥ 61 dB (at 772 kHz)
≥ 59 dB (with 1 MHz)
≥ 55 dB (at 2 МHz)
≥ 50 dB (at 4 МHz)
≥ 46 dB (at 8 МHz)
≥ 44 dB (at 10 MHz)
≥ 41 dB (at 16 MHz)
≥ 40 dB (at 20 МHz)
Attenuation≤ 15 dB/km (at 256 kHz)
≤ 24 dB/km (at 772 kHz)
≤ 27 dB/km (with 1 MHz)
≤ 52 dB/km (at 4 МHz)
≤ 84 dB/km (at 10 MHz)
≤ 112 dB/km (at 16 MHz)
≤ 119 dB/km (at 20 МHz)
Signal speed0.66 c
Coupling resistance< 250.00 mΩ/m (at 30 MHz)
Nominal voltage, cable250 V (Peak value, not for high-power applications)
Test voltage Core/Core1500 Vrms
Test voltage Core/Shield1000 Vrms
Flame resistanceaccording to VDE 0472, Part 4, test type B
according to IEC 60332-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-30 °C ... 70 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1534520 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 5
Type of housing (EF006980) Straight
Rated current In (EF008250) 4 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 48 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Nickel
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) Yes
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
