SACCBP-M12MS-6CON-M16/1,0-970 1429062 PHOENIX CONTACT Bus system flat-type plug

SACCBP-M12MS-6CON-M16/1,0-970

1429062

PHOENIX CONTACT

1 Pcs.

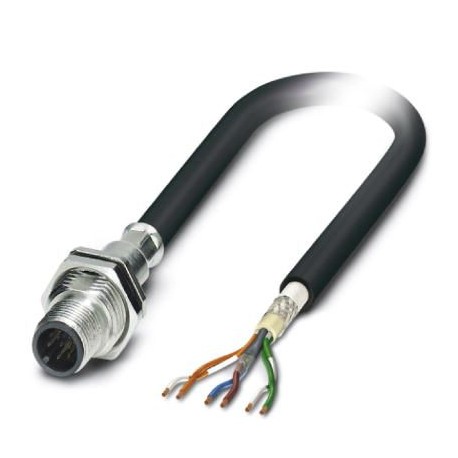

Bus system flat-type plug Conect. plug. to be apar. poster wall, 8-pole, SANTOPRENE halogen-free, black RAL 9005, shielded, Male connector, straight, M12, coding: A, at free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, 0.25 mm², Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239592

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1429062
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 324 (PC-2011)
GTIN4046356323024
Weight per Piece (excluding packing)109.400 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable1 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C2 A
Rated voltage30 V
Rated surge voltage0.8 kV
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque2 Nm ... 3 Nm (Installation-side)

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material, knurlsNickel-plated brass
Sealing materialFKM

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Cable typeVARAN
Cable type (abbreviation)970
Signal type/categoryVARAN CAT5 (IEC 11801), 100 Mbps
Cable structure1x2xAWG22/19 + 1x4xAWG24/19
Conductor cross section4x 0.25 mm² (Signal line)
2x 0.38 mm² (Power supply)
AWG signal line24
AWG power supply22
Conductor structure signal line19x 0.13 mm
Conductor structure, voltage supply19x 0.16 mm
Core diameter including insulation1.35 mm (Signal line)
1.5 mm (Power supply)
Wire colorsBrown, blue, white/orange, white/green, green, orange
Type of pair shieldingTinned copper braided shield, 95 % covering
Overall twist1 star quad and 2 wires with 2 fillers
ShieldingTinned copper-braided shield, approx. 85% covering
External sheath, colorblack RAL 9005
External cable diameter D7.8 mm ±0.2 mm
Smallest bending radius, fixed installation≥ 93 mm
Smallest bending radius, movable installation≥ 93 mm
Number of bending cycles3000000
Bending radius93 mm
Traversing path2 m
Traversing rate1 m/s
Acceleration2 m/s²
Cable weight81 kg/km
Outer sheath, materialSANTOPRENE halogen-free
Material, inner sheathTPE
Material, fillerYarn
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance5 GΩ*km (Data cable)
Conductor resistance77 Ω/m (Data cable)
Working capacitance50 nF (Data cable)
Wave impedance100 Ω ±15 %
Nominal voltage, cable125 V (Data cable)
48 V (Power supply)
Test voltage, cable2000 V (Power supply)
max. 700 V AC (Data cable)
Halogen-freein accordance with DIN EN 50267-2-1
Ambient temperature (operation)-20 °C ... 80 °C (Cable)
Ambient temperature (installation)0 °C ... 50 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1429062 Connectors (EC002635)
Feature Name Feature Value
Contact type (EF001587) Other
Number of data contacts (EF012232) 0
Number of power contacts (EF012216) 0
Number of control contacts (EF012217) 8
Type of housing (EF006980) Straight
Rated current In (EF008250) 2 A
Ambient temperature (EF002386) -25 °C
Rated voltage (EF000228) 30 V
Over voltage category (EF006785) II
Pollution degree (EF006786) 3
Material of contact surface (EF004020) Nickel
Housing material (EF001596) Plastic
Material thread ring (EF012304) Other
Type of locking (EF000208) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Degree of protection (IP), mounted (EF007466) IP67
Min. number of insertion cycles (EF012212) 100
Screened (EF000881) Yes
With status indication (EF001602) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
