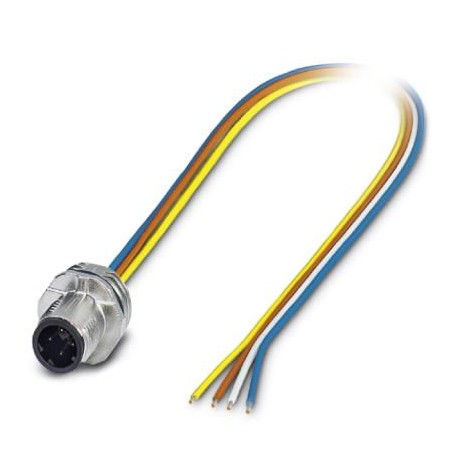

PHOENIX CONTACT SACC-E-MSD-4CON-M16/0,5 SCO SACC-E-MSD-4CON-M16/0,5 SCO 1551558 PHOENIX CONTACT Bus system flat-type plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-E-MSD-4CON-M16/0,5 SCO 1551558 PHOENIX CONTACT Bus system flat-type plug

SACC-E-MSD-4CON-M16/0,5 SCO

1551558

PHOENIX CONTACT

1 Pcs.

Bus system flat-type plug Conect. plug. to be apar. front wall, PROFINET CAT5 (IEC11801:2002), 4-pole, Male connector, straight, M12-SPEEDCON, encoding: D, free cable end, Front mounting, M16 x 1.5, Single stranded wires, cable length: 0.5 m, 0.34 mm², TPE braided wire

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1551558
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 34 (C-2-2017)
GTIN4046356153577
Weight per Piece (excluding packing)18.300 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable0.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling)
Rated current at 40°C4 A
Rated voltage250 V
Rated surge voltage2.5 kV
Number of positions4
Insulation resistance≥ 100 MΩ
CodingD - data
Standards/regulationsM12 connector IEC 61076-2-101
Signal type/categoryPROFINET
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodIndividual wires
Insertion/withdrawal cycles> 100
Torque3 Nm ... 4 Nm (Installation-side)
Mounting typeFront mounting M16 x 1.5

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material, knurlsZinc die-cast, nickel-plated
Sealing materialFKM

Cable

Cable typeTPE litz wire
Conductor cross section0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.2 mm ±0.07 mm
Thickness, insulation0.21 mm (Core insulation)
Wire colorsYellow, orange, white, blue
Material conductor insulationTPE
Conductor materialTin-plated Cu litz wires
Standards/specificationsM12 connector IEC 61076-2-101
Insulation resistance≥ 20 MΩ*km
Conductor resistance≤ 57.6 mΩ/m
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Nominal voltage, cable300 V
Test voltage, cable3000 V AC
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (cable, flexible installation)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1551558 Connectors (EC003570)
Feature Name Feature Value
Cable length (EF000536) 0.5 mm
Type of plug-in contact, outer side (EF005528) None
Mounting method (EF000003) Front mounting
Housing material (EF001596) Other
Material core insulation (EF000061) Other
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated voltage (EF000228) 250 V
With shield connection (EF002535) No
Screw-in thread (EF012303) M12
Core cross section (EF000018) 0.34 mm²
Min. number of insertion cycles (EF012212) 100
Degree of protection (IP), mounted (EF007466) Other
