View larger
Images are for illustrative purposes only. Please refer to data sheet for details

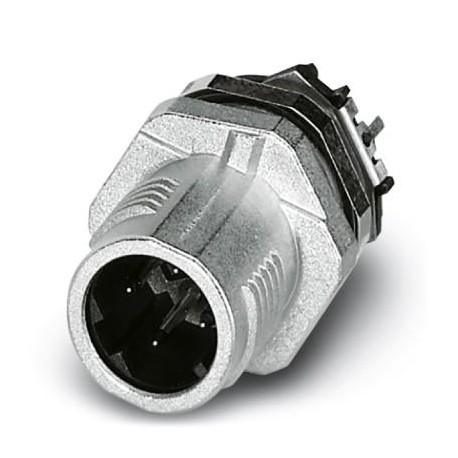

SACC-DSIV-MSD-4CON-L180 SCOTHR 1552175 PHOENIX CONTACT Bus system flat-type plug
SACC-DSIV-MSD-4CON-L180 SCOTHR
1552175
PHOENIX CONTACT
60 Pcs.
Bus system flat-type plug
Conect. plug. to be apar. poster wall, 4-pole, Male connector, straight, M12-SPEEDCON, coding: D, Rear mounting, M12 x 1, Weld connection THR, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1240004
Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1552175 |
|---|---|
| Packing unit | 60 pc |
| Minimum order quantity | 60 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 32 (PC-2009) |
| GTIN | 4046356162036 |
| Weight per Piece (excluding packing) | 9.400 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 250 V |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | D - data |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | THR solder connection |
| Mounting type | Rear mounting M12 x 1 With flat nut |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | FKM / EPDM |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
