SACC-DSI-MS-8CON-M12-SCO SH 1552997 PHOENIX CONTACT Panel feed-through

SACC-DSI-MS-8CON-M12-SCO SH

1552997

PHOENIX CONTACT

20 Pcs.

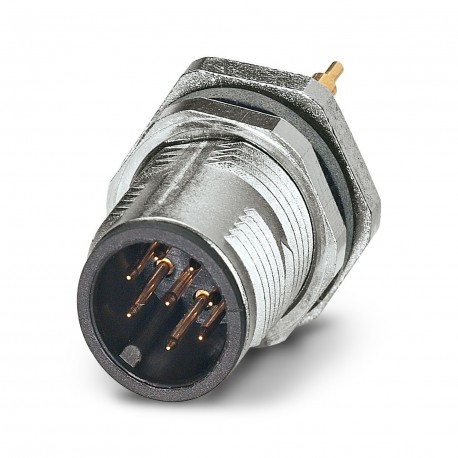

Panel feed-through Conect. plug. to be apar. poster wall, 8-pole, Male connector, straight, M12-SPEEDCON, coding: A, Rear mounting, M12 x 1, Soldering pins, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1240024 Rear device connector, 8-pin, Connector, straight, M12-SPEEDCON, code: A, Rear mounting, M12 x 1, Shanks, Alternative product according to RoHS II without exception 6c (Pb < 0.1 %) Item no.: 1240024

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1552997
Packing unit20 pc
Minimum order quantity20 pc
Catalog pagePage 249 (C-2-2013)
GTIN4046356162029
Weight per Piece (excluding packing)8.090 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C2 A
Rated voltage30 V
Rated surge voltage0.8 kV
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodSolder pins
Insertion/withdrawal cycles> 100
Torque1.5 Nm ... 2 Nm (Installation-side)
Mounting typeRear mounting M12 x 1 With flat nut

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Cable

Standards/specificationsM12 connector IEC 61076-2-101

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1552997 Connectors (EC003569)
Feature Name Feature Value
Mounting method (EF000003) Back wall mounting
Screw-in thread (EF012303) M12
With shield connection (EF002535) Yes
Number of poles (EF001391) 8
Number of control contacts (EF012217) 8
With PE-connection (EF005600) No
Coating housing (EF001601) Nickel-plated
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Min. number of insertion cycles (EF012212) 100
Degree of protection (IP), mounted (EF007466) IP65/IP67
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated current In (EF008250) 2 A
With thread (EF003723) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
