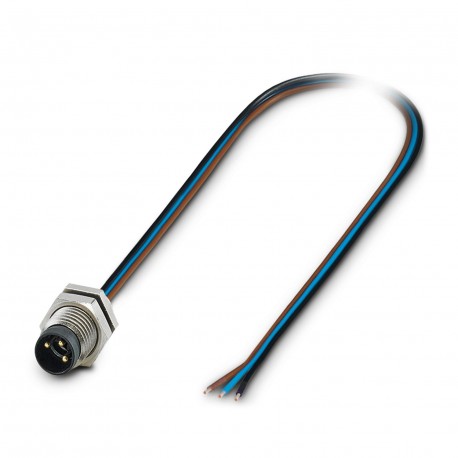

PHOENIX CONTACT SACC-DSI-M 8MS-3CON-M 8/0,5 SACC-DSI-M 8MS-3CON-M 8/0,5 1453478 PHOENIX CONTACT Flush-type connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACC-DSI-M 8MS-3CON-M 8/0,5 1453478 PHOENIX CONTACT Flush-type connector

SACC-DSI-M 8MS-3CON-M 8/0,5

1453478

PHOENIX CONTACT

1 Pcs.

Flush-type connector Conect. plug. to be apar. wall poster., 3-pole, Male connector, straight, M8, Rear mounting, M8 x 1, Single stranded wires, cable length: 0.5 m, 0.25 mm², PVC conductor

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1453478
Packing unit1 pc
Catalog pagePage 32 (C-2-2017)
GTIN4046356554381
Weight per Piece (excluding packing)10.600 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable0.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug)
Degree of protectionIP67

General

Rated current at 40°C4 A
Rated voltage50 V AC
60 V DC
Rated surge voltage1.5 kV
Number of positions3
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM8 connector IEC 61076-2-104
Status displayNo
Overvoltage categoryII
Degree of pollution3
Connection methodIndividual wires
Torque1 Nm ... 1.5 Nm (Installation-side)
Mounting typeRear mounting M8 x 1 With flat nut

Material

Flammability rating according to UL 94HB
Contact materialCu alloy
Contact surface materialAu
Contact carrier materialPUR / PA 6.6
Material, knurlsNickel-plated brass
Sealing materialFKM
Additional material specificationsEP (Grout material)

Cable

Cable typePVC litz wire
Conductor cross section0.25 mm²
AWG signal line24
Conductor structure signal line7x 0.20 mm
Core diameter including insulation1.5 mm ±0.1 mm
Thickness, insulation0.21 mm
Wire colorsbrown, blue, black
Material conductor insulationPVC / UL
Conductor materialTin-plated Cu litz wires
Standards/specificationsM8 connector IEC 61076-2-104
Insulation resistance≥ 20 MΩ*km
Conductor resistance≥ 80 Ω/km
Nominal voltage, cable300 V
Test voltage, cable2000 V AC
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-10 °C ... 105 °C (cable, flexible installation)

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Connection in acc. with standardCUL
Flammability rating according to UL 94HB

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
