View larger
Images are for illustrative purposes only. Please refer to data sheet for details

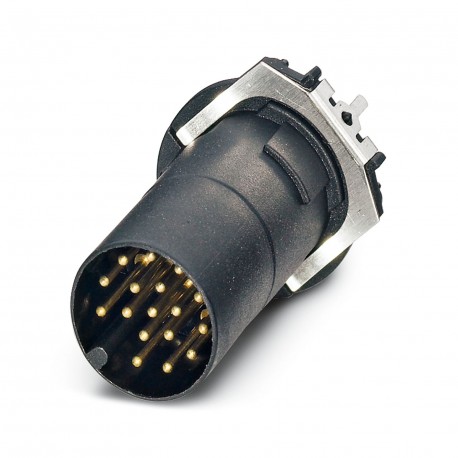

SACC-CI-M12MS-17CON-L180 THRSH 1442081 PHOENIX CONTACT Flush-type connector
SACC-CI-M12MS-17CON-L180 THRSH
1442081
PHOENIX CONTACT
60 Pcs.
Flush-type connector
Contact holder, 17-pole, Male, straight, M12, coding: A, Printed circuit board mounting, THR solder connection, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1239764
Contact carrier, 17-position, Pin, straight, M12, coding: A, PCB mounting, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239764
Connectors > Contact insert for circular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
Product properties
| Product type | Contact insert |
| Application | Signal |
| Number of positions | 17 |
| Shielded | yes |
| Coding | A |
| Thread type | M12 |
| Data management status | |
| Article revision | 08 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V |
| Nominal current IN | 1.5 A |
Connection data
| Connection method | THR solder connection |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PPA |
Connector
| Connection 1 | |
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | A |
Cable/line
| Ambient temperature (operation) | -40 °C ... 85 °C (cable, fixed installation) |
| -25 °C ... 85 °C (Cable, flexible installation) |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | > 100 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection (when plugged in) | IP67 (correctly plugged in and locked) |
| Degree of protection | IP67 (correctly plugged in and locked) |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
| -40 °C ... 85 °C (without mechanical actuation) | |
| -25 °C ... 85 °C (Cable, flexible installation) | |
| -40 °C ... 85 °C (cable, fixed installation) | |
Standards and regulations
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
Mounting
| Mounting type | PCB mounting |
Packaging specifications
| Type of packaging | Tray |
| Delivery state | with assembly pad |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 17 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 1.5 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 30 V |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Material of contact surface (EF004020) | Gold |
| Housing material (EF001596) | Plastic |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Min. number of insertion cycles (EF012212) | 100 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
