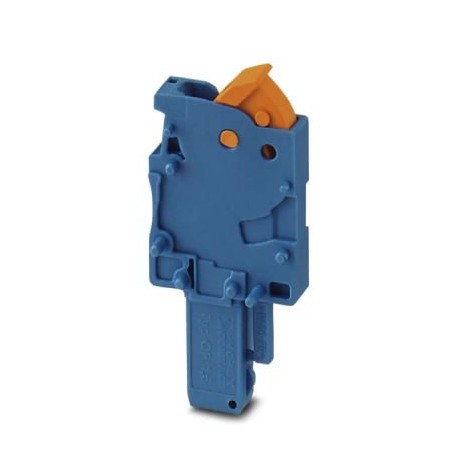

PHOENIX CONTACT QP 1,5/ 1-M BU QP 1,5/ 1-M BU 3051056 PHOENIX CONTACT Plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QP 1,5/ 1-M BU 3051056 PHOENIX CONTACT Plug

QP 1,5/ 1-M BU

3051056

PHOENIX CONTACT

50 Pcs.

Plug Connector, rated voltage: 500 V, rated current: 17.5 A, number of poles: 1, connection type: Quick connect, 1st floor, Sizing cross-section: 1.5 mm², cross-section: 0.25 mm²- 1.5 mm², color: blue

Connectors > Terminal block connector
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3051056
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 337 (C-1-2017)
GTIN4046356082907
Weight per Piece (excluding packing)4.110 g
Custom tariff number85366990
Country of originTR (Turkey)

General

Number of positions1
Number of levels1
Number of connections1
Nominal cross section1.5 mm²
Colorblue
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Machine building
Plant engineering
Maximum load current17.5 A (with 1.5 mm² conductor cross section)
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.56 W
Maximum load current17.5 A (with 1.5 mm² conductor cross section)
Nominal current IN17.5 A
Nominal voltage UN500 V
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width5.2 mm
Length20 mm
Height40 mm
24 mm
Pitch5.2 mm

Connection data

Connection methodQuick connection
Connection in acc. with standardIEC 61984
Conductor cross section solid min.0.25 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Conductor cross section flexible min.0.25 mm²
Conductor cross section flexible max.1.5 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible16
Material wire insulationPVC / PE
Structure of individual litz in acc. with VDE 0295 / smallest wire diameterVDE 0295 Cl.1-5
Max. wire diameter incl. insulation3 mm

Standards and Regulations

Connection in acc. with standardCSA
IEC 61984
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3051056 Terminal blocks (EC002021)
Feature Name Feature Value
Model (EF000010) Pin insert
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.25 mm²
Connectable conductor cross section multi-wired (EF007343) 0.25 mm²
Width (EF000008) 5.15 mm
Connectable (EF006169) No
Number of poles (EF001391) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
