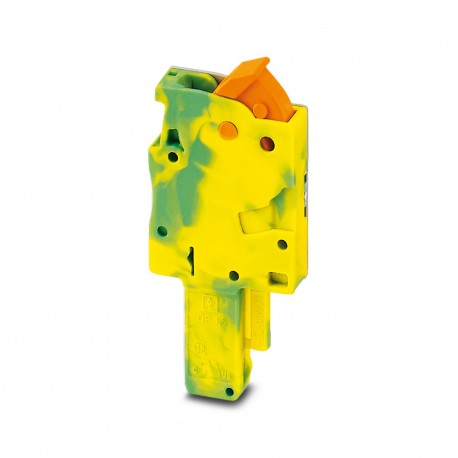

QP 1,5/ 1 GNYE 3051263 PHOENIX CONTACT Plug

QP 1,5/ 1 GNYE

3051263

PHOENIX CONTACT

50 Pcs.

Plug Connector, rated voltage: 500 V, rated current: 17.5 A, number of poles: 1, connection type: Quick connect, 1st floor, Sizing cross-section: 1.5 mm², cross-section: 0.25 mm²- 1.5 mm², color: yellow-green Plug, nom. voltage: 500 V, nominal current: 17.5 A, number of positions: 1, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm2, cross section: 0.25 mm2- 1.5 mm2, color: green-yellow

Connectors > Terminal block connector
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeTerminal plug
Number of positions1
Pitch5.2 mm
Data management status
Article revision05
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage6 kV
Connection data
Nominal cross section1.5 mm²
1 level
Material wire insulationPVC / PE
Connection in acc. with standardIEC 61984
Conductor cross section rigid0.25 mm² ... 1.5 mm²
Cross section AWG24 ... 16 (converted acc. to IEC)
Conductor cross section flexible0.25 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]24 ... 16 (converted acc. to IEC)
Cross section, sensor conductors0.25 mm² ... 0.34 mm²
Nominal current17.5 A
Maximum load current17.5 A (with 1.5 mm² conductor cross section)
Nominal voltage500 V
Nominal cross section1.5 mm²
Dimensions
Width5.2 mm
Height20 mm
Depth40 mm
Length20 mm
Pitch5.2 mm
Material specifications
Colorgreen-yellow
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)125 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 61984

ETIM for 3051263 Terminal blocks (EC002021)
Feature Name Feature Value
Model (EF000010) Pin insert
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.25 mm²
Connectable conductor cross section multi-wired (EF007343) 0.25 mm²
Width (EF000008) 5.15 mm
Connectable (EF006169) No
Number of poles (EF001391) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
