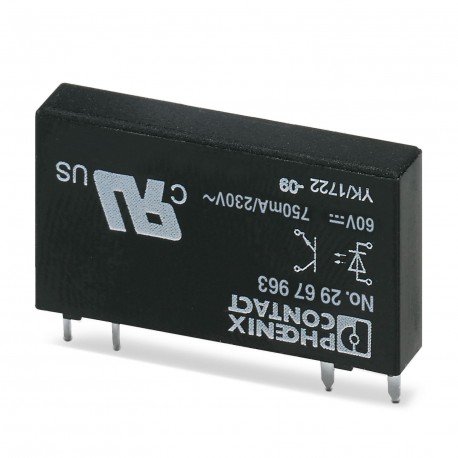

OPT-60DC/230AC/ 1 2967963 PHOENIX CONTACT Miniature solid-state relay

OPT-60DC/230AC/ 1

2967963

PHOENIX CONTACT

10 Pcs.

Miniature solid-state relay Plug-in miniature solid-state relay, power solid-state relay, 1 closing contact, input: 60 V DC, output: 24-253 V AC/ 0.75 A Plug-in Miniature Solid State Relay, Power Solid State Relay, 1 Open Contact at Rest, Input: 60 V DC, Output: 24-253 V AC/ 0.75 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2967963
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 395 (C-5-2017)
GTIN4017918190521
Weight per Piece (excluding packing)4.000 g
Custom tariff number85364190
Country of originDE (Germany)

Dimensions

Width5 mm
Height28 mm
Depth15 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Nominal input voltage UN60 V DC
Input voltage range in reference to UN0.9 ... 1.1
Input voltage range54 V DC ... 66 V DC
Switching threshold "0" signal, voltage≤ 15 V
Switching threshold "1" signal voltage≥ 50 V
Typical input current at UN3 mA
Typical response time9 ms (at UN)
Typical turn-off time700 µs (at UN)
Transmission frequency10 Hz
Power dissipation for nominal condition0.18 W

Output data

Output voltage range24 V AC ... 253 V AC
Limiting continuous current0.75 A (see derating curve)
Maximum inrush current30 A (10 ms)
Min. load current10 mA
Leakage current< 1 mA (in off state)
Max. load value4.5 A2s
Voltage drop at max. limiting continuous current< 1 V
Output circuit2-conductor floating, zero voltage switch
Type of protectionRCV circuit
Protective circuit/componentRCV circuit

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Degree of protectionRT III (wash-proof)
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2967963 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 54 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 24 V
Type of output voltage (EF008222) AC
Rated operation current Ie (EF001443) 0.75 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
