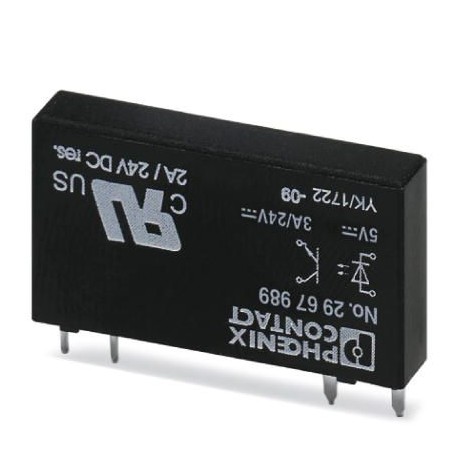

OPT- 5DC/ 24DC/ 2 2967989 PHOENIX CONTACT Miniature solid-state relay

OPT-5DC/ 24DC/ 2

2967989

PHOENIX CONTACT

10 Pcs.

Miniature solid-state relay Miniature plug-in solid-state relay, solid-state power relay, 1 closing contact, input voltage: 5 V DC

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2967989
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 394 (C-5-2017)
GTIN4017918820763
Weight per Piece (excluding packing)3.500 g
Custom tariff number85364190
Country of originHU (Hungary)

Dimensions

Width5 mm
Height28 mm
Depth15 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Nominal input voltage UN5 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range4 V DC ... 6 V DC
Switching threshold "0" signal, voltage≤ 0.8 V
Switching threshold "1" signal voltage≥ 2.5 V
Typical input current at UN9 mA
Typical response time20 µs (at UN)
Typical turn-off time300 µs (at UN)
Transmission frequency300 Hz
Power dissipation for nominal condition0.05 W

Output data

Output voltage range3 V DC ... 33 V DC
Limiting continuous current3 A (see derating curve)
Maximum inrush current15 A (10 ms)
Voltage drop at max. limiting continuous current≤ 150 mV
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Degree of protectionRT III (wash-proof)
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2967989 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 4 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 3 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
