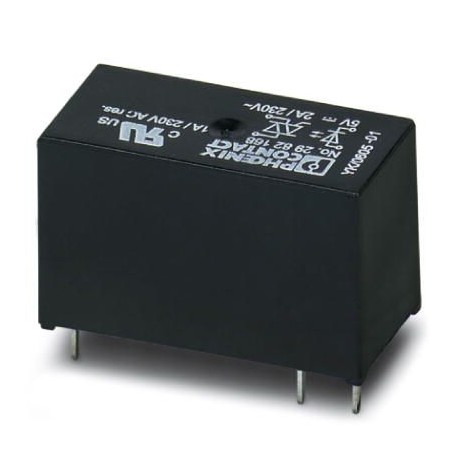

OPT- 5DC/230AC/ 2 2982168 PHOENIX CONTACT Miniature solid-state relay

OPT-5DC/230AC/ 2

2982168

PHOENIX CONTACT

10 Pcs.

Miniature solid-state relay Plug-in miniature solid-state relay, solid-state power relay, 1 closing contact, input: 5 V DC, output: 24-253 V AC/ 2 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2982168
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 311 (C-5-2017)
GTIN4017918996963
Weight per Piece (excluding packing)10.930 g
Custom tariff number85364190
Country of originHU (Hungary)

Dimensions

Width12.7 mm
Height29 mm
Depth15.7 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Nominal input voltage UN5 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range4 V DC ... 6 V DC
Switching threshold "0" signal, voltage< 1 V DC
Switching threshold "1" signal voltage> 3 V DC
Typical input current at UN15 mA
Typical response time10 ms
Typical turn-off time10 ms
Type of protectionReverse polarity protection
Protective circuit/componentPolarity protection diode
Transmission frequency10 Hz
Power dissipation for nominal condition0.08 W

Output data

Output nominal voltage230 V AC
Output voltage range24 V AC ... 253 V AC
Limiting continuous current2 A (see derating curve)
Maximum inrush current30 A (10 ms)
Min. load current25 mA
Leakage current< 1 mA
Surge current30 A (10 ms)
Max. load value4 A2s (tp = 10 ms, at 25 °C)
Voltage drop at max. limiting continuous current≤ 1 V
Output circuit2-conductor floating, zero voltage switch
Type of protectionSurge protection
Protective circuit/componentRC element

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Mounting positionany
Assembly instructionsSee derating curve
Operating mode100% operating factor
Degree of protectionRT III (wash-proof)
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Rated insulation voltage250 V AC
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2982168 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 4 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 24 V
Type of output voltage (EF008222) AC
Rated operation current Ie (EF001443) 2 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
