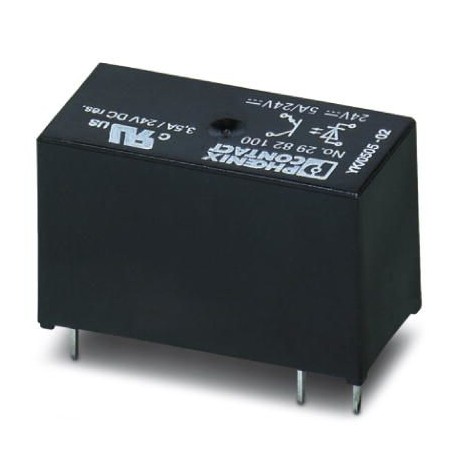

PHOENIX CONTACT OPT-24DC/ 24DC/ 5 OPT-24DC/ 24DC/ 5 2982100 PHOENIX CONTACT Miniature solid-state relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

OPT-24DC/ 24DC/ 5 2982100 PHOENIX CONTACT Miniature solid-state relay

OPT-24DC/ 24DC/ 5

2982100

PHOENIX CONTACT

10 Pcs.

Miniature solid-state relay Plug-in miniature solid-state relay, power solid-state relay, 1 closing contact, input: 24 V DC, output: 3-33 V DC/5 A

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2982100
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 310 (C-5-2017)
GTIN4017918937492
Weight per Piece (excluding packing)11.650 g
Custom tariff number85364190
Country of originHU (Hungary)

Dimensions

Width12.7 mm
Height29 mm
Depth15.7 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range19.2 V DC ... 28.8 V DC
Switching threshold "0" signal, voltage≤ 10 V
Switching threshold "1" signal voltage≥ 16 V
Typical input current at UN7 mA
Typical response time20 µs
Typical turn-off time400 µs
Type of protectionReverse polarity protection
Protective circuit/componentPolarity protection diode
Transmission frequency300 Hz
Power dissipation for nominal condition0.17 W

Output data

Output nominal voltage24 V DC
Output voltage range3 V DC ... 33 V DC
Limiting continuous current5 A (see derating curve)
Maximum inrush current15 A (10 ms)
Surge voltage protection> 33 V DC
Voltage drop at max. limiting continuous current≤ 200 mV
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection
Protective circuit/componentPolarity protection diode

General

Test voltage input/output2.5 kV (50 Hz, 1 min.)
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Degree of protectionRT III (wash-proof)
Flammability rating according to UL 94V0
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

Connection in acc. with standardCUL
DesignationStandards/regulations
Standards/regulationsIEC 60664
EN 50178
Rated insulation voltage100 V DC
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2982100 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 19.2 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 5 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) No
