View larger
Images are for illustrative purposes only. Please refer to data sheet for details

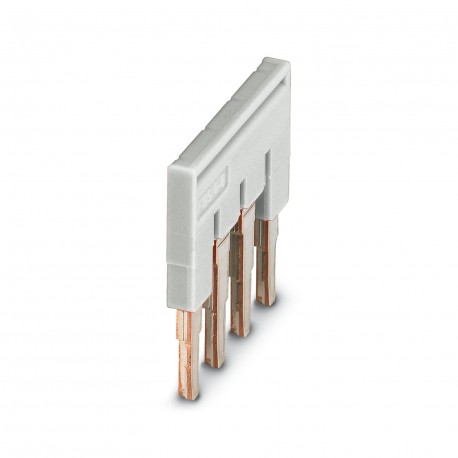

FBS 4-6 GY 3032279 PHOENIX CONTACT Plug-in bridge
FBS 4-6 GY
3032279
PHOENIX CONTACT
50 Pcs.
Plug-in bridge
Plug-in bridge, pitch: 6.2 mm, colour: grey
Plug-in bridge, pitch: 6.2 mm, number of poles: 4, color: gray
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3032279 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 397 (C-1-2017) |
| GTIN | 4017918984243 |
| Weight per Piece (excluding packing) | 3.760 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Technical data
| Color | gray |
|---|---|
| Material | Copper |
| Number of positions | 4 |
| Pitch | 6.2 mm |
| Height | 23 mm |
| Width | 23.1 mm |
| Flammability rating according to UL 94 | V0 |
| Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141199eCl@ss 4.127141199eCl@ss 5.027141140eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141140eCl@ss 8.027141140eCl@ss 9.027141140
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Mounting method (EF000003) | Pluggable |
| Modular spacing (EF000394) | 6.2 mm |
| Colour (EF000007) | Grey |
