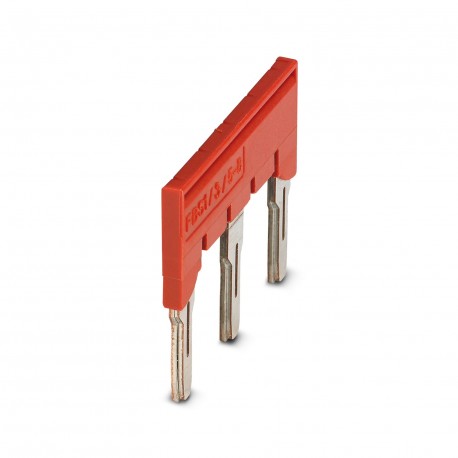

PHOENIX CONTACT FBS 1/3/5-8 FBS 1/3/5-8 3032389 PHOENIX CONTACT Plug-in bridge View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FBS 1/3/5-8 3032389 PHOENIX CONTACT Plug-in bridge

FBS 1/3/5-8

3032389

PHOENIX CONTACT

10 Pcs.

Plug-in bridge Plug-in bridge, pitch: 8.2 mm, pole assignment: 1,3,5, colour: red Plug-in bridge, pitch: 8.2 mm, number of positions: 5, pin assignment: 1,3,5, color: red

Connectors > Cross-connector for terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeJumper
Number of positions5
Pitch8.2 mm
Data management status
Article revision02
Electrical properties
Maximum load current41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Connection data
Maximum load current41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Dimensions
Width39.3 mm
Height29.6 mm
Depth29.6 mm
Pitch8.2 mm
Material specifications
Colorred (RAL 3001)
MaterialCopper
Flammability rating according to UL 94V0
Insulating materialPA
Mechanical properties
Technical data
Pin assignment1, 3, 5
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Mounting
Mounting typePlug-in mounting

ETIM for 3032389 Terminal blocks (EC000489)
Feature Name Feature Value
Explosion-tested version 'Ex e' (EF008498) No
Mounting method (EF000003) Pluggable
Modular spacing (EF000394) 8.2 mm
Colour (EF000007) Red
