View larger
Images are for illustrative purposes only. Please refer to data sheet for details

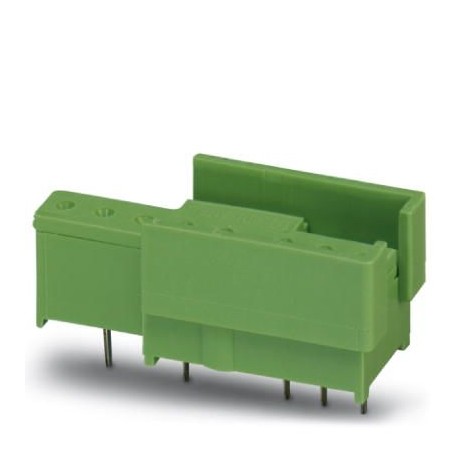

SIM-AMS 1 2271015 PHOENIX CONTACT Relay base
SIM-AMS 1
2271015
PHOENIX CONTACT
10 Pcs.
Relay base
Plug-in socket for standard I/O modules, with different contact arrangements, labelled with BN or BNB labelling indexes
Automation > Relay socket
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2271015 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 560 (C-7-2013) |
| GTIN | 4017918103484 |
| Weight per Piece (excluding packing) | 9.140 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Nominal voltage UN | 250 V AC |
|---|---|
| 380 V AC | |
| Nominal current IN | 5 A |
| Number of contacts, type | 1 |
| Color | green |
| Insulating material | PA |
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371603eCl@ss 5.127371000eCl@ss 6.027371600eCl@ss 7.027371603eCl@ss 8.027371603eCl@ss 9.027371603
| Feature Name | Feature Value |
|---|---|
| With detachable clamps (EF003340) | No |
| Function extension possible (EF003444) | No |
