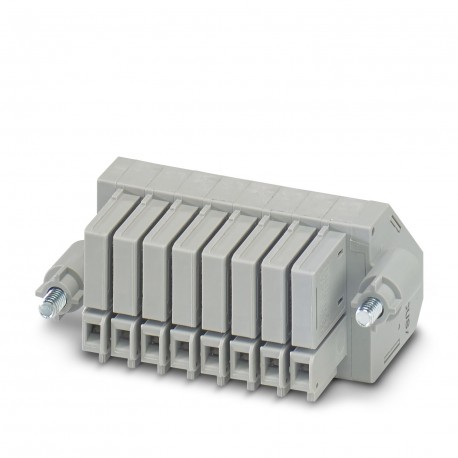

UP 4-4VT 3208721 PHOENIX CONTACT Plug

UP 4-4VT

3208721

PHOENIX CONTACT

10 Pcs.

Plug Connector for four voltage converters Plug for four voltage transducers

Automation > Test plug for terminal blocks
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePlug
Number of positions8
Number of connections8
Number of rows1
Potentials8
Data management status
Article revision05
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage4 kV
Maximum power dissipation for nominal condition1.31 W
Connection data
Nominal cross section6 mm²
Rated cross section AWG10
Level 1
Screw threadM3
Tightening torque0.6 ... 0.8 Nm
Stripping length8 mm ... 9 mm
Internal cylindrical gageA4
Connection in acc. with standardIEC 61984
Conductor cross section rigid0.14 mm² ... 6 mm²
Cross section AWG26 ... 10 (converted acc. to IEC)
Conductor cross section flexible0.14 mm² ... 6 mm²
Conductor cross section, flexible [AWG]26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 4 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)0.5 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.14 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG rigid26 ... 16 (converted acc. to IEC)
2 conductors with same cross section, flexible0.14 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible26 ... 16 (converted acc. to IEC)
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Nominal current15 A
Nominal voltage320 V
Dimensions
Width86.7 mm
Height56.4 mm
Depth34.3 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelNo
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 61984
Mounting
Mounting typeInsertion in base strip

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
