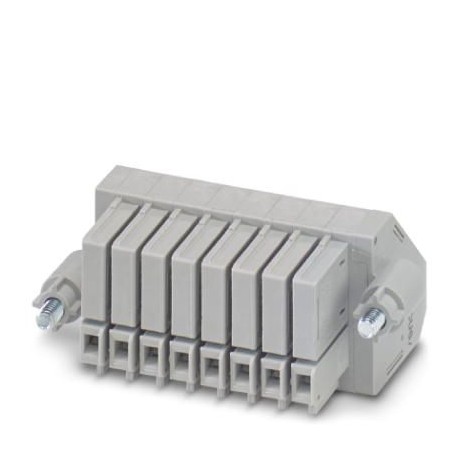

UP 4-4CT 3208720 PHOENIX CONTACT Plug

UP 4-4CT

3208720

PHOENIX CONTACT

10 Pcs.

Plug Connector for four current transformers, each with a forward transformer short circuit

Automation > Test plug for terminal blocks
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3208720
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 350 (C-1-2017)
GTIN4046356663342
Weight per Piece (excluding packing)84.110 g
Custom tariff number85366990
Country of originPL (Poland)

General

Number of positions8
Number of levels1
Number of connections8
Potentials8
Nominal cross section6 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage4 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.31 W
Ambient temperature (operation)-50 °C ... 100 °C
Ambient temperature (assembly)-50 °C ... 100 °C
Maximum load current15 A
Nominal current IN15 A
Nominal voltage UN320 V
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width74.4 mm
Length45.4 mm
Height34.3 mm
Drill hole spacing78.4 mm

Connection data

Connection methodScrew connection
Screw threadM3
Stripping length8 mm ... 9 mm
Tightening torque, min0.6 Nm
Tightening torque max0.8 Nm
Connection in acc. with standardIEC 61984
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.10
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.6 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.1.5 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1.5 mm²
Internal cylindrical gageA4

Standards and Regulations

Connection in acc. with standardIEC 61984
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3208720 Terminal blocks (EC002555)
Feature Name Feature Value
Strip length (EF006824) 8 mm
Rated voltage (EF000228) 320 V
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Type of electric connection (EF003961) Screw connection
Connectable (EF006169) No
Number of poles (EF001391) 8
