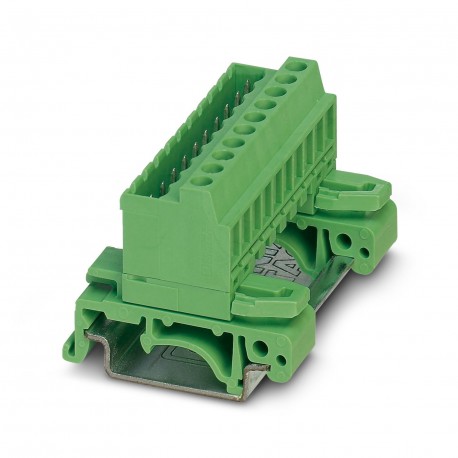

UMSTBVK 2,5/15-G-5,08 1788240 PHOENIX CONTACT Plug-in block

UMSTBVK 2,5/15-G-5,08

1788240

PHOENIX CONTACT

50 Pcs.

Plug-in block Rail connector, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 15, number of rows: 1, number of poles: 15, number of connections: 15, family of articles: UMSTBVK 2.5/.. -G, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Rail, driver/printed circuit board connection direction: 0 °, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, lock: without, fixing type: without, packaging type: boxed Connector on the profile, nominal cross-section: 2.5 mm2, colour: green, nominal current: 12 A, reference voltage (III/2): 320 V, contact area: Sn, contact type: Male, number of potentials: 15, number of rows: 1, number of poles: 15, number of connections: 15, item range: UMSTBVK 2.5/.. -G, pitch: 5.08 mm, connection type: Screwed connection with ring, screw driving surface: L Longitudinal slot, conductor/PCB plugging direction: 0 °, number of pins per potential: 1, plug-in system: COMBICON MSTB 2.5, locking: without, fastening type: without, packaging type: packed in a carton

Automation > Feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1788240
Packing unit50 pc
Catalog pagePage 361 (C-1-2013)
GTIN4017918043308
Weight per Piece (excluding packing)39.860 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length [ l ]34.5 mm
Width [ w ]77.72 mm
Height [ h ]42.5 mm
Pitch5.08 mm
Dimension a71.12 mm

General

Range of articlesUMSTBVK 2,5/..-G
Number of positions15
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)320 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section2.5 mm²
Maximum load current12 A
Insulating materialPA
Flammability rating according to UL 94V0
Internal cylindrical gageA3
Stripping length7 mm
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm²
Minimum AWG according to UL/CUL30
Maximum AWG according to UL/CUL12

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1788240 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Rated voltage (EF000228) 320 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Other
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 77.7 mm
Height (EF000040) 34.5 mm
Depth (EF000049) 42.52 mm
Colour (EF000007) Green

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
