PHOENIX CONTACT PTDA 2,5/ 2-PH-5,0 PTDA 2,5/ 2-PH-5,0 1725497 PHOENIX CONTACT Plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

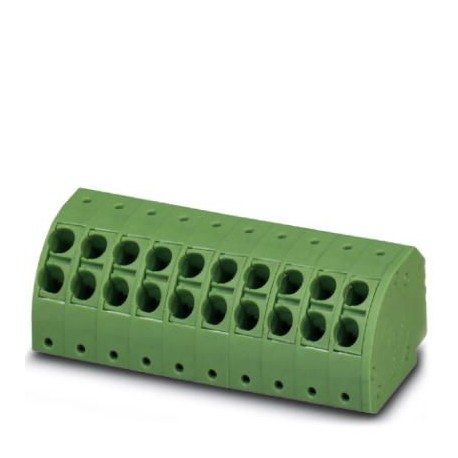

PTDA 2,5/ 2-PH-5,0 1725497 PHOENIX CONTACT Plug

PTDA 2,5/ 2-PH-5,0

1725497

PHOENIX CONTACT

250 Pcs.

Plug Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 14 A, nominal voltage (III/2): 400 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 4, family of articles: PTDA 2.5/.. -PH, pitch: 5mm, connection type: Push-in spring connection, driver/printed circuit board connection direction: 45°, plug-in system: COMBICON PST 1.3, lock: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1725497
Packing unit250 pc
Minimum order quantity250 pc
Catalog pagePage 409 (C-1-2013)
GTIN4046356129756
Weight per Piece (excluding packing)3.690 g
Custom tariff number85366990
Country of originPL (Poland)

Item properties

Brief article descriptionPCB connector
Plug-in systemCOMBICON COMPACT PST 1,3
Type of contactFemale connector
Range of articlesPTDA 2,5/..-PH
Pitch5 mm
Number of positions2
Connection methodPush-in spring connection
Lockingwithout
Number of levels1
Number of connections4
Number of potentials2

Electrical parameters

Rated current13.5 A
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG / kcmil24 ... 14
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 1 mm²
2 conductors with same cross section, solid0.2 mm² ... 2.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 2.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 1 mm²
Stripping length10 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]20 mm
Width [ w ]11.4 mm
Height [ h ]16 mm
Pitch5 mm
Height (without solder pin)16 mm
Dimension a5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package250
Denomination packing unitsPcs.

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)320 V
Rated insulation voltage (III/2)400 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1725497 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 13.5 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
