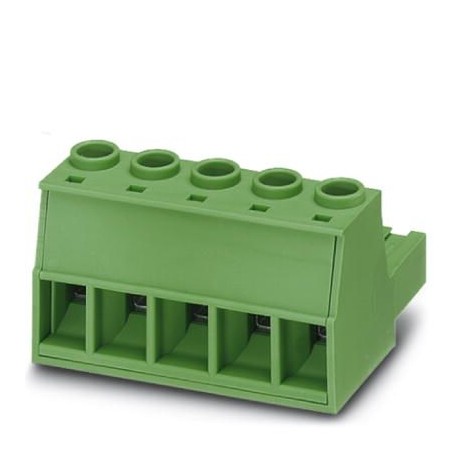

PHOENIX CONTACT PC 6/ 7-ST-10,16 PC 6/ 7-ST-10,16 1913552 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PC 6/ 7-ST-10,16 1913552 PHOENIX CONTACT Printed-circuit board connector

PC 6/ 7-ST-10,16

1913552

PHOENIX CONTACT

25 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 6 mm², color: green, nominal current: 41 A, nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Female, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, family of articles: PC 6/.. -ST, pitch: 10.16 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: COMBICON PC 16, locking: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1913552
Packing unit50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 550 (C-1-2013)
GTIN4017918179038
Weight per Piece (excluding packing)57.770 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]39 mm
Width [ w ]70.16 mm
Height [ h ]27.55 mm
Pitch10.16 mm
Dimension a60.96 mm

General

Range of articlesPC 6/..-ST
Number of positions7
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN41 A
Nominal cross section6 mm²
Maximum load current41 A
Insulating materialPA
Flammability rating according to UL 94V0
Internal cylindrical gageA5
Stripping length12 mm
Screw threadM4
Tightening torque, min1.2 Nm
Tightening torque max1.5 Nm

Connection data

Conductor cross section solid min.0.75 mm²
Conductor cross section solid max.10 mm²
Conductor cross section flexible min.0.75 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
Conductor cross section AWG min.18
Conductor cross section AWG max.8
2 conductors with same cross section, solid min.0.75 mm²
2 conductors with same cross section, solid max.4 mm²
2 conductors with same cross section, stranded min.0.75 mm²
2 conductors with same cross section, stranded max.6 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.4 mm²
Minimum AWG according to UL/CUL20
Maximum AWG according to UL/CUL8

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1913552 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 7
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 10.16 mm
Modular spacing connections (EF006827) 10.16 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.75 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Silver
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
