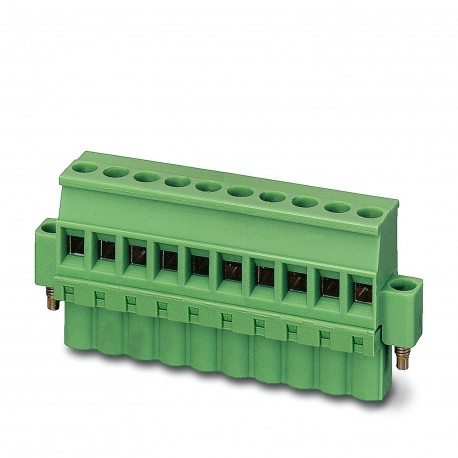

PHOENIX CONTACT MVSTBW 2,5/ 5-STF-5,08 EX MVSTBW 2,5/ 5-STF-5,08 EX 1809814 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MVSTBW 2,5/ 5-STF-5,08 EX 1809814 PHOENIX CONTACT Printed-circuit board connector

MVSTBW 2,5/ 5-STF-5,08 EX

1809814

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, contact surface: Tin, contact type: Female, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: MVSTBW 2.5/.. -STF-EX, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal groove, conductor connection direction/printed circuit board: -90 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5 EX, locking: Screw locking, fixing type: Air clamping (screw), packaging type: Boxed Packaging PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, contact surface: Sn, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: MVSTBW 2,5/..-STF-EX, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: -90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5 EX, locking: Screw locking mechanism, mounting: Screw flange, type of packaging: packed in cardboard

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB connector
Product familyMVSTBW 2,5/..-STF-EX
Product lineCOMBICON Connectors M
TypeStandard
Number of positions5
Pitch5.08 mm
Number of connections5
Number of rows1
Number of potentials5
Mounting flangeScrew flange
Data management status
Article revision02
Electrical properties
Nominal current IN12 A
Nominal voltage UN176 V
Rated current / conductor cross section12 A/2.5 mm²
Ex data
Ex approval
Identification0344 II 2GD / Ex eb IIC Gb
EU-type examination certificateKEMA 10ATEX0196 U
IECEx certificateIECEx KEM 10.0093U
Connection data
Connection technology
TypeStandard
Connector systemCOMBICON MSTB 2,5 EX
Nominal cross section2.5 mm²
Contact connection typeSocket
Interlock
Locking typeScrew locking mechanism
Mounting flangeScrew flange
Tightening torque0.3 Nm
Conductor connection
Connection methodScrew connection with tension sleeve
Conductor/PCB connection direction-90 °
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
2 conductors with same cross section, solid0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
Cylindrical gauge a x b / diameter2.8 mm x 2.0 mm / 2.4 mm
Stripping length7 mm
Drive form screw headSlotted (L)
Tightening torque0.5 Nm ... 0.6 Nm
Specifications for ferrules without insulating collar
recommended crimping tool1212034 CRIMPFOX 6
Specifications for ferrules with insulating collar
recommended crimping tool1212034 CRIMPFOX 6
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawingwypbxjsnqu.jpg
Pitch5.08 mm
Width [w]35.56 mm
Height [h]26 mm
Length [l]12.6 mm
Mounting
Flange
Tightening torque0.3 Nm
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 1809814 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -60 °C
