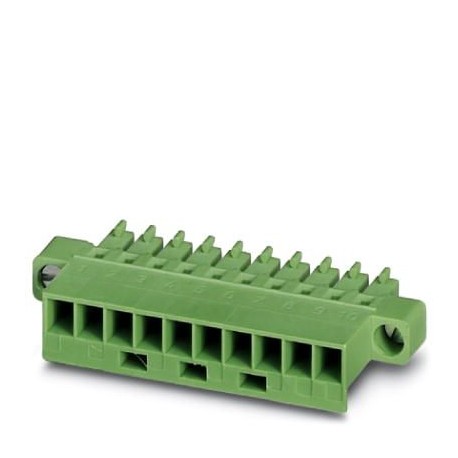

PHOENIX CONTACT MCC 1/ 5-STZF-3,81 MCC 1/ 5-STZF-3,81 1852396 PHOENIX CONTACT Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCC 1/ 5-STZF-3,81 1852396 PHOENIX CONTACT Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 ..

MCC 1/ 5-STZF-3,81

1852396

PHOENIX CONTACT

50 Pcs.

Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Crimp connection, Color: green, Corresponding female crimp contacts with current [A] and conductor cross section range [mm²] data: 5A/MCC-MT 0,2-0,35 (1859988); 8A/MCC-MT 0,5-1,0 (1859991) Connector for printed circuit board, nominal section: 1 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact type: Female, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: MCC 1/.. -STZF, pitch: 3.81 mm, connection type: Crimped connection, conductor/printed circuit board connection direction: 0 °, plug-in system: COMBICON MC 1.5, lock: Screw lock, fixing type: Air clamping (screw), packaging type: boxed, corresponding crimped female contacts, with indications regarding the current [A] and the range of conductor cross-sections [mm²]: 5A/MCC-MT 0.2-0.35 (1859988); 8A/MCC-MT 0.5-1.0 (1859991)

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Pitch3.81 mm
Dimension a15.24 mm

General

Range of articlesMCC 1/..-STZF
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1 mm²
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Number of positions5

Connection data

Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.18
Minimum AWG according to UL/CUL20
Maximum AWG according to UL/CUL18

ETIM for 1852396 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Type of electric connection (EF003961) Crimp connection
Connectable cable type (EF006816) Tubular cable
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
