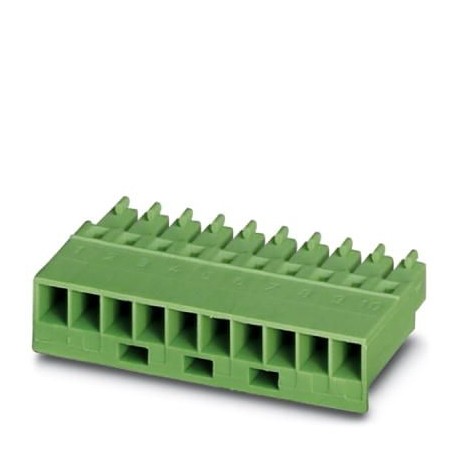

PHOENIX CONTACT MCC 1/ 4-STZ-3,81 MCC 1/ 4-STZ-3,81 1852192 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MCC 1/ 4-STZ-3,81 1852192 PHOENIX CONTACT Printed-circuit board connector

MCC 1/ 4-STZ-3,81

1852192

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 1 mm², color: green, rated current: 8 A, sizing voltage (III/2): 160 V, contact type: Connection female, Number of potentials: 4, Number of rows: 1, Number of row poles: 4, number of connections: 4, article family: MCC 1/.. -STZ, pitch: 3.81 mm, connection type: Set connection, connection direction conductor/printed circuit board: 0 °, Stecksystem: MINI COMBICON, Locking: without, type of packaging: boxed, corresponding set female contacts, with indications regarding current [A] and range of conductor sections [mm²]: 5A/MCC-MT 0.2-0.35 (1859988); 8A/MCC-MT 0.5-1.0 (1859991)

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1852192
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 206 (C-1-2013)
GTIN4017918125837
Weight per Piece (excluding packing)1.090 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]23.1 mm
Width [ w ]16.03 mm
Height [ h ]8.7 mm
Pitch3.81 mm
Dimension a11.43 mm

General

Range of articlesMCC 1/..-STZ
Number of positions4
Connection methodCrimp connection
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1 mm²
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0

Connection data

Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.18
Minimum AWG according to UL/CUL20
Maximum AWG according to UL/CUL18

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1852192 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Type of electric connection (EF003961) Crimp connection
Connectable cable type (EF006816) Tubular cable
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
