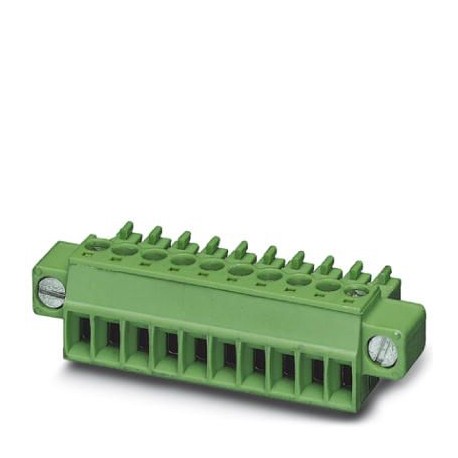

PHOENIX CONTACT MC 1,5/ 2-STF-3,81 MC 1,5/ 2-STF-3,81 1827703 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MC 1,5/ 2-STF-3,81 1827703 PHOENIX CONTACT Printed-circuit board connector

MC 1,5/ 2-STF-3,81

1827703

PHOENIX CONTACT

250 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: MC 1.5/.. -STF, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping shape: L Longitudinal slot, driver/printed circuit board connection direction: 0 °, plug-in system: COMBICON MC 1.5, locking: Screw locking, fixing type: Overhead clamping (screw), packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1827703
Packing unit250 pc
Catalog pagePage 191 (C-1-2013)
GTIN4017918050160
Weight per Piece (excluding packing)2.260 g
Custom tariff number85366990
Country of originDE (Germany)

Item properties

Brief article descriptionPrinted-circuit board connector
Plug-in systemMINI COMBICON
Type of contactFemale connector
Range of articlesMC 1,5/..-STF
Pitch3.81 mm
Number of positions2
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted (L)
Screw threadM2
LockingScrew flange
Number of levels1
Number of connections2
Number of potentials2

Electrical parameters

Rated current8 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil28 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.5 mm²
2 conductors with same cross section, solid0.08 mm² ... 0.5 mm²
2 conductors with same cross section, flexible0.08 mm² ... 0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 0.34 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 0.5 mm²
Cylindrical gauge a x b / diameter2.4 mm x 1.5 mm / 1.6 mm
Stripping length7 mm
Torque0.22 Nm ... 0.25 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]16.1 mm
Width [ w ]18.01 mm
Height [ h ]11.1 mm
Pitch3.81 mm
Height (without solder pin)11.1 mm
Dimension a3.81 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package250
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (dependent on the derating curve)

Termination and connection method

Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.14 mm² / solid / > 7 N
0.14 mm² / flexible / > 7 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N

Mechanical tests according to standard

Visual examinationTest passed IEC 60512-1-1:2002-02
Dimensional testTest passed IEC 60512-1-2:2002-02
Resistance of markingTest passed IEC 60068-2-70:1995-12
ResultTest passed
SpecificationIEC 60512-13-2:2006-02
No. of cycles25
Insertion strength per pos. approx.6 N
Withdraw strength per pos. approx.4 N
Polarization and codingTest passed IEC 60512-13-5:2006-02
ResultTest passed
SpecificationIEC 60512-15-1:2008-05
Test force per pos.21 N

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)160 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)320 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Mechanical tests (A)

Insertion strength per pos. approx.6 N
Withdraw strength per pos. approx.4 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed

Durability tests (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R11.3 mΩ
Insertion/withdrawal cycles25
Contact resistance R21.5 mΩ
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV
Insulation resistance, neighboring positions15 TΩ

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeFinger safety with IP20 test finger

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1827703 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
