View larger
Images are for illustrative purposes only. Please refer to data sheet for details

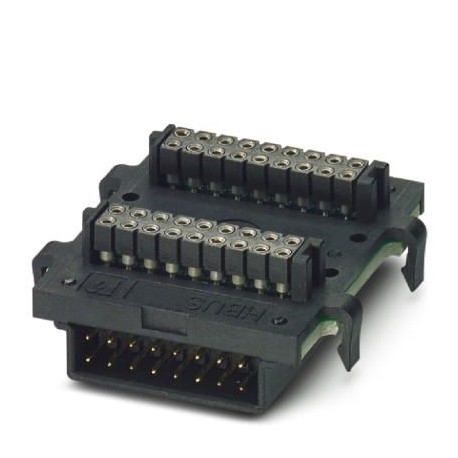

HBUS 35,6-16P-2S BK 2896319 PHOENIX CONTACT DIN rail bus connectors
HBUS 35,6-16P-2S BK
2896319
PHOENIX CONTACT
10 Pcs.
DIN rail bus connectors
Rail bus connectors, colour: black, rated current: 3 A (max. total current 25 A), rated voltage (III/2): 30 V, number of poles: 16, pitch: 2.54 mm, mounting: Rail mounting, locking: without
Cables > Cable connector
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2896319 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 702 (C-1-2013) |
| GTIN | 4046356096737 |
| Weight per Piece (excluding packing) | 13.100 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 105 °C (dependent on the derating curve) |
|---|
Technical data
| Connection in acc. with standard | CUL |
|---|---|
| Nominal voltage UN | 60 V |
| Nominal current IN | 2 A |
| Indicator1 | CUL1 |
| Number of positions | 16 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440309eCl@ss 9.027440309
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Modular spacing contacts (EF007326) | 2.54 mm |
| Modular spacing connections (EF006827) | 2.54 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 3 A |
| Rated voltage (EF000228) | 30 V |
| Rated surge voltage (EF002993) | 0.8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable cable type (EF006816) | Tubular cable |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
