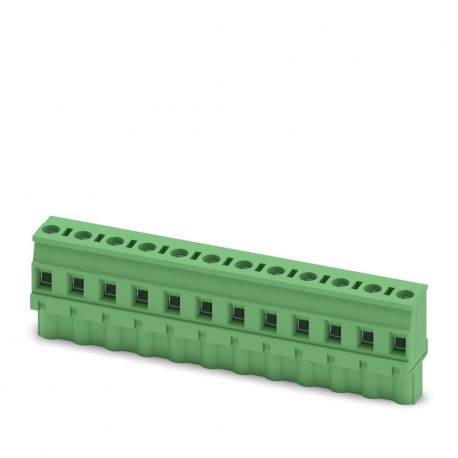

PHOENIX CONTACT GMVSTBW 2,5/12-ST GMVSTBW 2,5/12-ST 1737916 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GMVSTBW 2,5/12-ST 1737916 PHOENIX CONTACT Printed-circuit board connector

GMVSTBW 2,5/12-ST

1737916

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Female, number of potentials: 12, number of rows: 1, number of poles: 12, number of connections: 12, family of articles: GMVSTBW 2.5/.. -ST, pitch: 7.5 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: -90 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Socket, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: GMVSTBW 2,5/..-ST, pitch: 7.5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: -90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB connector
Product familyGMVSTBW 2,5/..-ST
Product lineCOMBICON Connectors M
TypeStandard
Number of positions12
Pitch7.5 mm
Number of connections12
Number of rows1
Number of potentials12
Mounting flangewithout
Data management status
Article revision04
Electrical properties
Nominal current IN12 A
Nominal voltage UN630 V
Contact resistance2.2 mΩ
Rated voltage (III/3)500 V
Rated surge voltage (III/3)6 kV
Rated voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
Connection data
Connection technology
TypeStandard
Connector systemCOMBICON MSTB 2,5
Nominal cross section2.5 mm²
Contact connection typeSocket
Interlock
Locking typewithout
Mounting flangewithout
Conductor connection
Connection methodScrew connection with tension sleeve
Conductor/PCB connection direction-90 °
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1 mm²
Cylindrical gauge a x b / diameter2.8 mm x 2.0 mm / 2.4 mm
Stripping length7 mm
Drive form screw headSlotted (L)
Tightening torque0.5 Nm ... 0.6 Nm
Specifications for ferrules without insulating collar
recommended crimping tool1212034 CRIMPFOX 6
Specifications for ferrules with insulating collar
recommended crimping tool1212034 CRIMPFOX 6
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawingwypbxjsnqu.jpg
Pitch7.5 mm
Width [w]88 mm
Height [h]12.6 mm
Length [l]26 mm
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Mechanical tests
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / solid / > 50 N
2.5 mm² / flexible / > 50 N
Insertion and withdrawal forces
SpecificationIEC 60512-13-2:2006-02
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6 N
Torque test
SpecificationIEC 60999-1:1999-11
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level4.8 kV
Contact resistance R12.2 mΩ
Contact resistance R22.2 mΩ
Insertion/withdrawal cycles25
Insulation resistance, neighboring positions> 5 MΩ
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage2.21 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions12
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)500 V
Rated surge voltage (III/3)6 kV
minimum clearance value - non-homogenous field (III/3)5.5 mm
minimum creepage distance (III/3)6.3 mm
Note on connection cross sectionWith connected conductor 4 mm² (solid).
Rated insulation voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
minimum clearance value - non-homogenous field (III/2)5.5 mm
minimum creepage distance (III/2)5.5 mm
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
minimum clearance value - non-homogenous field (II/2)5.5 mm
minimum creepage distance (II/2)5.5 mm
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 1737916 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 12
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 7.5 mm
Modular spacing connections (EF006827) 7.5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
