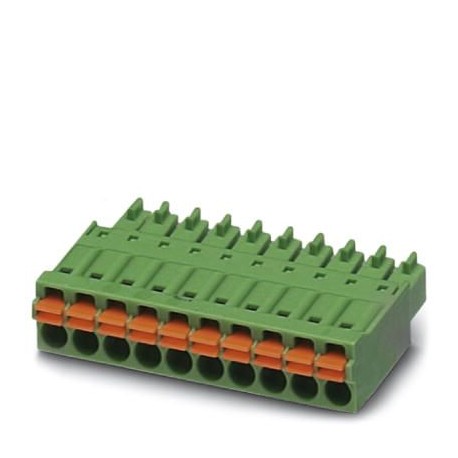

PHOENIX CONTACT FMC 1,5/10-ST-3,81 FMC 1,5/10-ST-3,81 1748053 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FMC 1,5/10-ST-3,81 1748053 PHOENIX CONTACT Printed-circuit board connector

FMC 1,5/10-ST-3,81

1748053

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, family of articles: FMC 1.5/.. -ST, pitch: 3.81 mm, connection type: Push-in spring connection, driver/printed circuit board connection direction: 0°, plug-in system: COMBICON MC 1.5, lock: without, fixing type: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1748053
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 200 (C-1-2013)
GTIN4046356311090
Weight per Piece (excluding packing)5.850 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length [ l ]21.9 mm
Width [ w ]38.54 mm
Height [ h ]7.75 mm
Pitch3.81 mm
Dimension a34.29 mm

General

Range of articlesFMC 1,5/..-ST
Number of positions10
Connection methodPush-in spring connection
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1.5 mm²
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length10 mm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Minimum AWG according to UL/CUL24
Maximum AWG according to UL/CUL16

Specifications for ferrules

Recommended crimping pliers1212034 CRIMPFOX 6
Ferrules without insulating collar, according to DIN 46228‑1Cross section: 0.25 mm²; Length: 5 mm ... 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 10 mm

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
